Hydraulic Breaker Tool / Chisel (Conical Point) – 75 x 680 mm

A reliable conical point chisel with a 75 mm diameter, engineered for efficient demolition work and breaking materials such as concrete, brick, and asphalt. Thanks to the use of high-quality materials and advanced heat treatment, the tool boasts excellent wear resistance and optimal impact energy transmission, ensuring long and trouble-free operation in JCB breakers.

Key Product Features:

• High Efficiency: The conical point shape perfectly penetrates and shatters hard structures, speeding up work on the construction site.
• Wear Resistance: The chisel undergoes a specialized hardening process, which significantly reduces the risk of mechanical damage and deformation.
• Machine Safety: The precisely maintained diameter (75 mm) ensures a proper fit in the breaker's guide bushing, protecting against excessive vibrations.

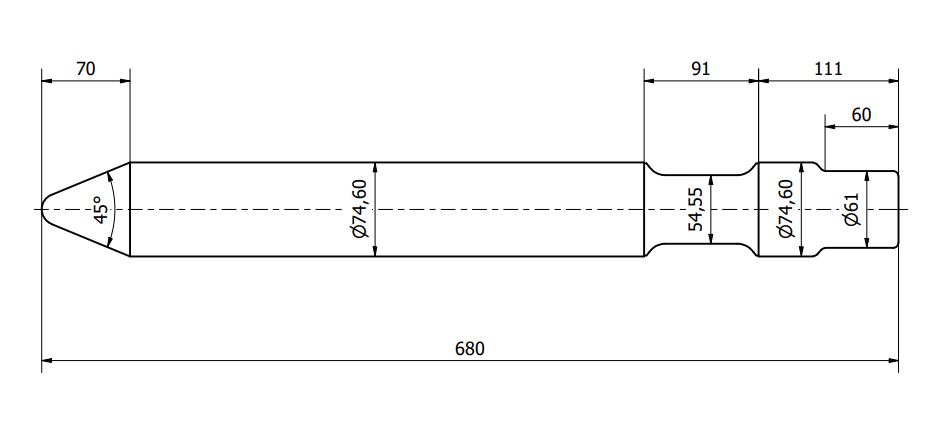

Technical Specifications:

Application (Compatible Breakers):

Technical Advice: In hydraulic breakers, the tool is subjected to extreme friction. When installing and operating a new chisel, remember to lubricate it regularly and generously with a dedicated breaker paste (e.g., copper, graphite, or molybdenum grease). Running "dry" drastically accelerates the wear of both the working tool and the guide bushings. Also, regularly check the condition of the tool retainer pins.

Catalog number: SP0430/SZPIC
