JCB Satellite lock/seger 40.5mm

JCB Satellite lock/seger 40.5mm

05/903807
12.76 zł
Tax included

10.37 zł tax excl.

3 3 By purchasing this product, you will earn points exchangeable for a discount voucher worth 0.30 złfor your next order.

Quantity
Available

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 20/951595 20-951595 20951595 05-903807 05903807

Description

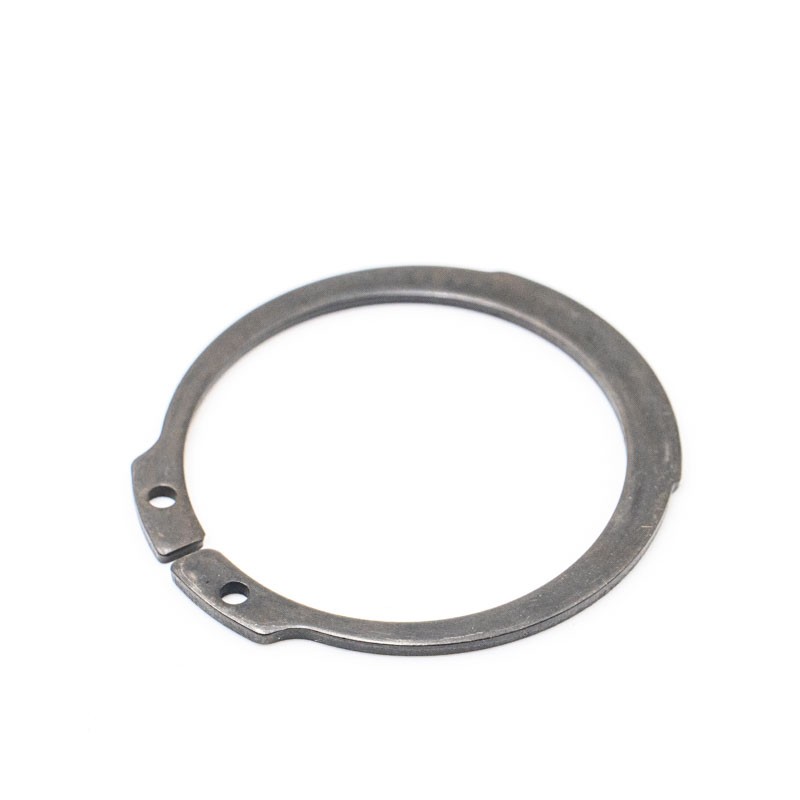

JCB Final Drive Planetary Snap Ring (Circlip) 40.5mm

High-quality spring retaining ring (circlip type) with a 40.5mm diameter, designed for axial securing of planetary gears in JCB tracked excavator planetary transmissions. This key component is responsible for holding the satellites in the correct position on the pins, preventing displacement that could lead to a failure of the entire final drive. Made of high-strength spring steel, it features resistance to deformation and stable operation in gear oil temperatures.

Technical Specification:

  • Diameter: 40.5 mm.
  • Type: External retaining ring.
  • Application: Final drive planetary transmission (travel drive).
  • Material: Hardened spring steel.

Compatibility:

Machine TypeModels and Variants
JCB Tracked Excavators JS 130, JS 190, JS 200, JS 210, JS 220, JS 235, JS 240, JS 260, JS 290, JS 330, JS 360, JS 370, JZ 235, JZ 255, 300X, 370X [T4F/STV], 370X LS V, 370X L-SV (2023–2026), 370X LR SV, 370X N-SV (2023–2026)
Workshop Technical Advice: During final drive service, it is recommended to replace circlips with new ones or subject them to a thorough inspection. A deformed ring loses its original elasticity and may slip out of the groove under operating load. Always use dedicated circlip pliers for installation to avoid over-expanding the material. Before seating the ring, ensure that the planetary pin groove is thoroughly cleaned of old oil residue and metal shavings.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 05/903807

Product Details
05/903807

Data sheet

Machine type
EXCAVATOR
Machine
JCB
