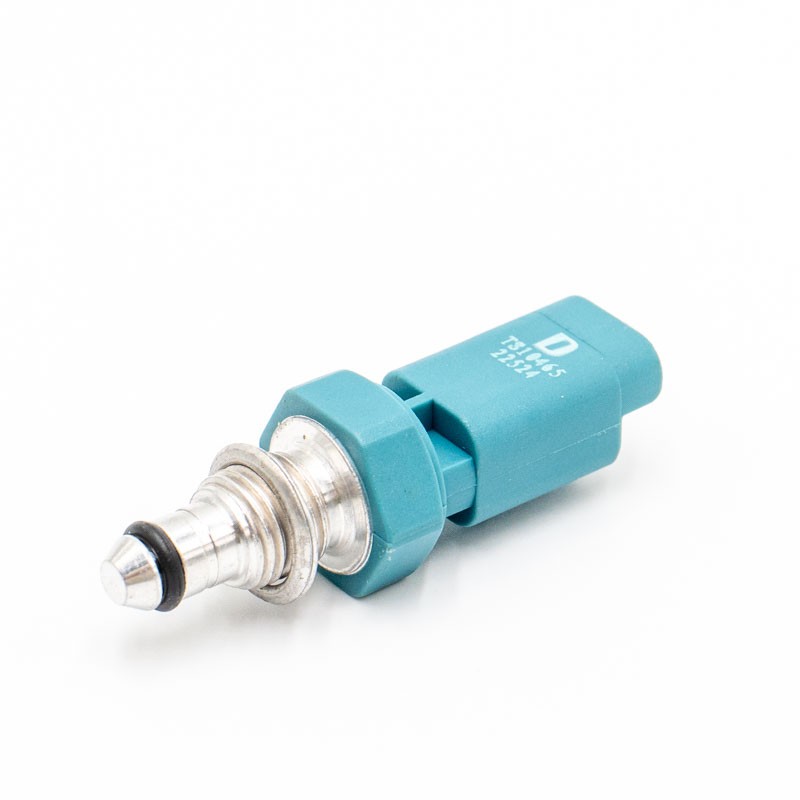

Fuel Temperature Sensor Injection Pump (fits JCB) - DELPHI 400/15074
High-quality fuel temperature sensor by DELPHI for the Delphi injection pump on JCB engines. The sensor is fitted in the fuel supply system at the high-pressure pump and measures the fuel temperature, allowing the engine ECU to monitor and prevent overheating of the injection system. A failed sensor shows up as ECU fault codes, starting problems, rough running or the engine entering limp mode. DELPHI brand - the manufacturer of the original injection pump, guaranteeing measurement accuracy.
Technical Specification:
| Part Type |
Fuel temperature sensor |
|---|
| Parts Category |
Fuel System / Electronics / Sensor |
|---|
| Part Number |
400/15074 |
|---|
| Mounting |
Injection pump (Delphi) |
|---|
| Brand |
DELPHI |
|---|
Application (JCB Machines):
Backhoe Loaders
3CX · 4CX · 5CX Series
Compact Track Loaders
225T · 250T · 260T · 270T · 300T · 320T · 325T · 400T · MCT · Teleskid T Series
Skid Steer Loaders
225 · 250 · 260 · 270 · 280 · 300 · 330 · MC · Teleskid Series
Rough Terrain Forklifts
926 · 930 · 940 · 945 · 950 Series
Telescopic Handlers
506 · 507 · 508 · 509 · 510 · 512 · 525 · 527 · 530 · 531 · 532 · 533
535 · 536 · 538 · 540 · 541 · 542 · 550 · 555 · 558 · 560 Series
Telescopic Wheel Loaders
TM 200 · TM 300 · TM 400 Series
Tracked Excavators
JS Series · JZ Series · X Series · XR Series
Wheeled Excavators
DM · Hydradig · JS Series (Wheeled)
Wheeled Loaders
411 · 413/413S · 417HT · 433 · 440 · 455 Series
Workshop Technical Tip: The fuel temperature sensor is a low-failure-rate measuring component - before replacing it, check the condition of the wiring, connector and pins, which are a more common cause of faults than the sensor itself. Corroded or damp contacts give false readings that are mistaken for sensor failure. When replacing the sensor on the injection pump, maintain cleanliness - small contaminants in the high-pressure system can damage the injectors. After replacement, clear the fault codes from the ECU and verify correct temperature readings with diagnostics. Fit a new O-ring/seal on assembly.
