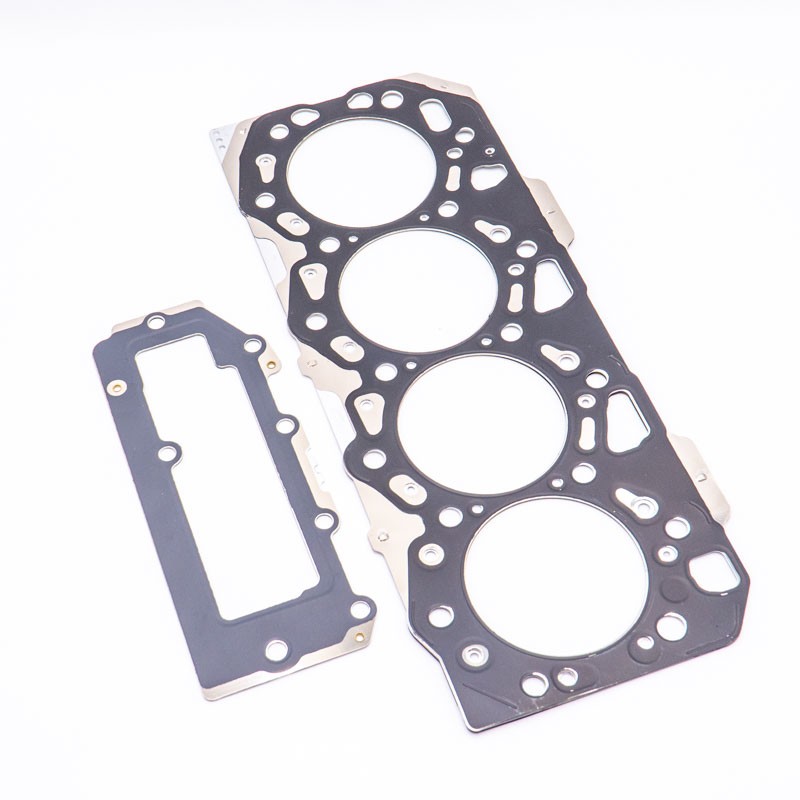

Cylinder Head Gasket 1.10mm (fits ISUZU 4JJ1) - AM 8973288672
High-quality cylinder head gasket, 1.10 mm thick, by AM for ISUZU 4JJ1 engines. The gasket seals between the block and the cylinder head, separating the combustion chambers, coolant passages and oil galleries. It is a critical part - failure shows up as blow-by, oil mixing with coolant, overheating and power loss. AM grade - precise manufacture, full interchangeability with the OEM part.
Technical Specification:
| Part Type |
Cylinder head gasket |
|---|
| Parts Category |
Engine / Seals / Cylinder Head Gasket |
|---|
| Part Number |
8973288672 |
|---|
| Other Number Formats |
8-97328867-2 · 897328-8672 · 8-97328-867-2 |
|---|
| Cross-Reference Numbers |
8982916840 · 8982448530 · 8982410380 · 8973288671 · 8981359540 |
|---|
| Thickness |
1.10 mm |
|---|
| Compatible Engines |
ISUZU 4JJ1 |
|---|
| Quality |
AM (Aftermarket) |
|---|
Application:
Workshop Technical Tip: The cylinder head gasket thickness (here 1.10 mm) is matched to the piston protrusion above the block - the 4JJ1 engine has 1.05 / 1.10 / 1.15 mm versions available. Before buying, measure the piston protrusion or check the marking on the old gasket to select the correct thickness - the wrong thickness changes the compression ratio and risks valve-to-piston contact. The block and head surfaces must be perfectly clean, flat and degreased; check the head for flatness with a straightedge. Tighten the head bolts using the correct method (torque + angle) in the correct sequence per ISUZU specification - the 4JJ1 usually uses single-use (TTY) bolts. Do not apply sealant to the head gasket unless the manufacturer specifically requires it.
