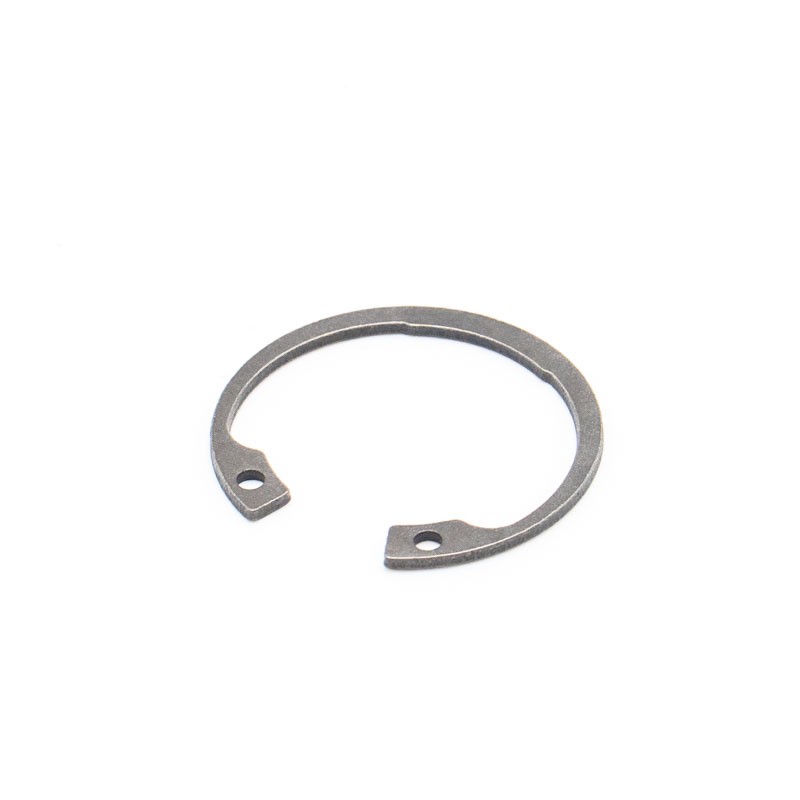

Piston Pin Circlip 4JJ1 Engine (fits ISUZU) - AM 8944606870
High-quality piston pin circlip (gudgeon pin retaining ring) by AM for ISUZU 4J series engines. The circlip holds the piston pin in its correct position, preventing it from moving and contacting the cylinder bore during engine operation. It is a small but critical part - omitting or damaging it during assembly leads to piston seizure and serious engine failure. AM grade - precise manufacture, full interchangeability with the OEM part.
Technical Specification:
| Part Type |
Piston pin circlip (gudgeon pin retaining ring) |
|---|
| Parts Category |
Engine / Piston / Pin and Clips |
|---|
| Part Number |
8944606870 |
|---|
| Other Number Formats |
8-94460687-0 · 894460-6870 · 8-94460-687-0 |
|---|
| Compatible Engines |
ISUZU 4JA1 · 4JB1 · 4JC1 · 4JG1 · 4JG2 · 4JJ1 |
|---|
| Quality |
AM (Aftermarket) |
|---|
Application:
ISUZU Engines
4JA1 · 4JB1 · 4JC1 · 4JG1 · 4JG2 · 4JJ1
Machine Makes
Hitachi · JCB · Case · New Holland · Bobcat · Furokawa · Iseki
Sumitomo · IHI · Kobelco · Takeuchi · Komatsu · Hyundai · Hyster
Airman · Ausa · Hanix · Gehl · Hidromek · PelJob
Workshop Technical Tip: Piston pin circlips are strictly single-use items - fit new clips at every piston removal, as old ones lose their spring tension and can fall out during operation. After fitting, make sure the clip is fully seated in its groove around the entire circumference - incomplete seating risks the clip dislodging and the pin scoring the cylinder bore (serious engine failure). The pin must rotate freely but without excessive play. Note the correct clip orientation (if it has a gap/tang, position it per the manual, usually gap up or down). Wear safety glasses - the clip can fly off during fitting.
