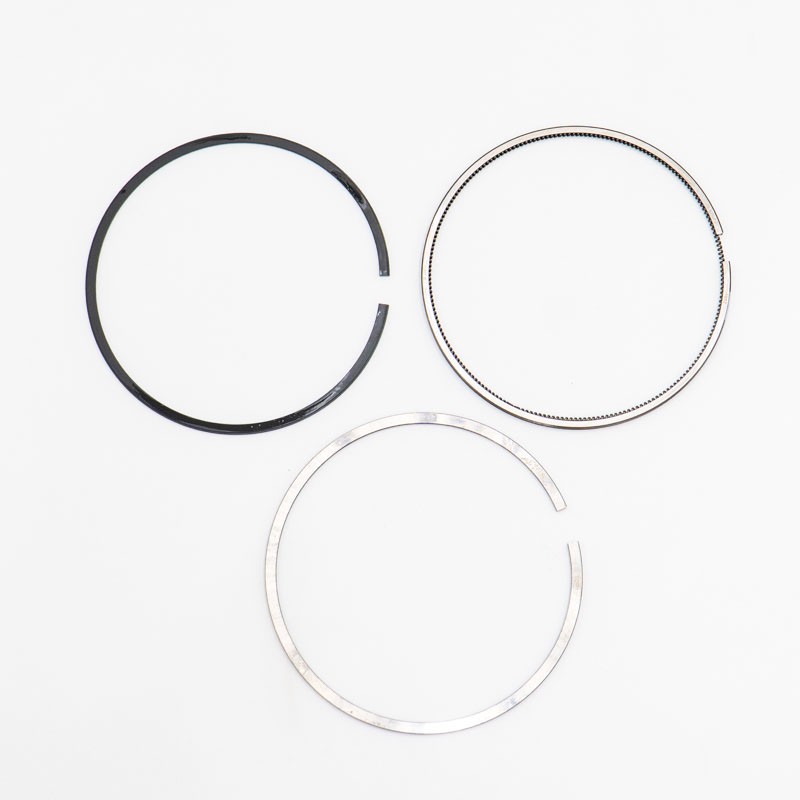

Piston Ring Set (fits ISUZU 4JJ1) - AM 8980572220
High-quality piston ring set by AM for ISUZU 4JJ1 engines. The set covers one piston. Piston rings seal the combustion chamber, prevent combustion gases from passing into the crankcase and control the oil film on the cylinder bore. Worn rings show up as power loss, increased oil consumption and excessive smoke. AM grade - precise manufacture, full interchangeability with the OEM part.
Technical Specification:
| Part Type |
Piston ring set (per 1 piston) |
|---|
| Parts Category |
Engine / Piston / Piston Rings |
|---|
| Part Number |
8980572220 |
|---|
| Other Number Formats |
8-98057222-0 · 898057-2220 · 8-98057-222-0 |
|---|
| Ring Widths |
3.00 x 1.50 x 2.00 mm · bore 95.4 mm |
|---|
| Engine |
ISUZU 4JJ1 |
|---|
| Quality |
AM (Aftermarket) |
|---|
Application:
Machine Makes
JCB · Case · New Holland · Hitachi · Komatsu · Kobelco · Hyundai
Sumitomo · Takeuchi · Bobcat · Hidromek · Airman · Hyster · Gehl
Ausa · IHI · Hanix · Iseki · Furukawa · PelJob
Workshop Technical Tip: One set covers one piston - a 4-cylinder engine (4JJ1) needs 4 sets. When fitting, stagger the ring gaps relative to each other per ISUZU specification (usually 120 or 180 degrees apart, not in line and not over the pin) - poorly positioned gaps cause blow-by and oil loss. Note the correct fitting side of the rings (marked "TOP" or with a dot facing up). Fit the rings with a ring expander, never bend them by hand - cracked or permanently deformed rings will not seal. Use a ring compressor before sliding the piston into the cylinder and make sure the bore is correctly honed.
