ISUZU Piston ring set 105mm STD 4BG1 6BG1

ISUZU Piston ring set 105mm STD 4BG1 6BG1

1121211150
114.39 zł
Tax included

93.00 zł tax excl.

31 31 By purchasing this product, you will earn points exchangeable for a discount voucher worth 3.10 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 8971047060

Description

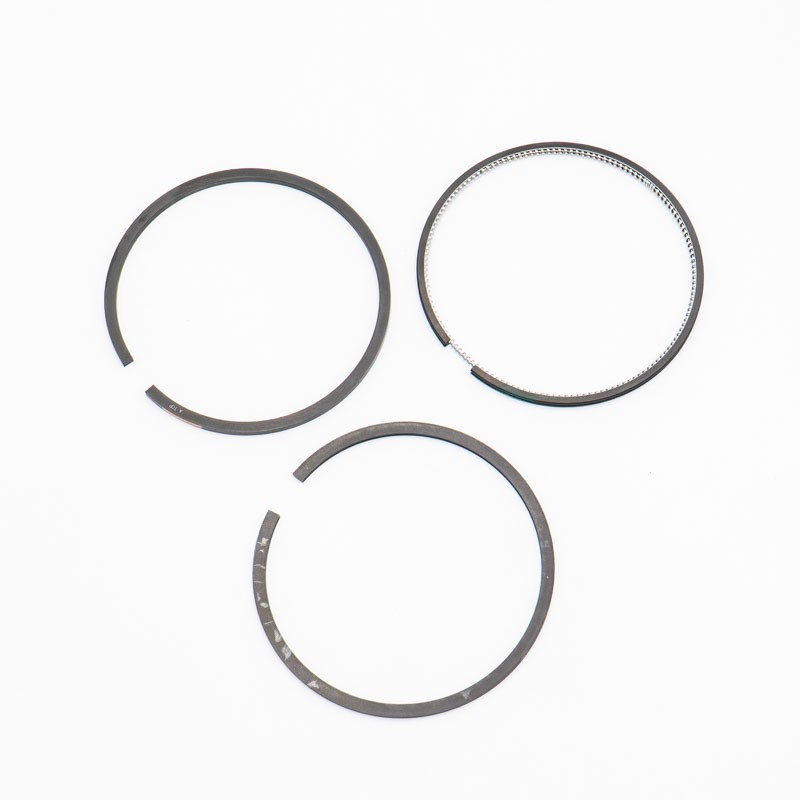

ISUZU Piston Ring Set 4BG1 / 6BG1 (105mm)

High-quality piston ring set (kit for one piston) dedicated to ISUZU engines of the 4BG1 and 6BG1 series. The offered product is the STD (Standard/Nominal) version, intended for installation on 105 mm diameter pistons in liners that do not require repair grinding. The application of a chrome coating on the compression ring and an expander spring in the oil ring ensures excellent compression and reduced oil consumption in heavy construction machinery.

Product Features:

  • 3-Ring Configuration: Classic layout consisting of a compression ring, scraper ring, and oil control ring with a spring.
  • High Durability: Materials resistant to high combustion temperatures, typical for turbo engines (4BG1T / 6BG1T).
  • Nominal Size: Perfect fit for factory pistons and liners with a diameter of 105.00 mm.

Technical Specifications:

Cylinder Diameter 105 mm (STD)
1st Ring Height 3.50 mm
2nd Ring Height 2.50 mm
3rd Ring Height (Oil) 4.00 mm

Application (ISUZU Engines):

Engine Models 4BG1, 4BG1T (Turbo), 6BG1, 6BG1T (Turbo)
Typical Machinery Excavators: Hitachi (EX200-5, ZX200), JCB (JS200, JS240), Case, Sumitomo, Link-Belt
Technical Tip: Before installing new STD rings, absolutely check the condition of the cylinder liner. If a "ridge" is palpable in the upper part of the liner or ovality exceeds the norm, installing nominal rings may result in their breakage. Remember to stagger the ring gaps by 120 degrees relative to each other and maintain the appropriate ring gap clearance (according to the Isuzu service manual) to avoid engine seizure after warm-up.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 1121211150

Product Details
1121211150

Data sheet

Engine
ISUZU
Isuzu series
4BG1
6BG1
Machine
Isuzu
