Hydraulic Piston Pump 80cc 343bar (fits JCB) - OEM

333/R6486
12,177.00 zł
Tax included

9,900.00 zł tax excl.

3300 3300 By purchasing this product, you will earn points exchangeable for a discount voucher worth 330.00 złfor your next order.

Quantity
Out-of-Stock


Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 333/R2915 20/925743 20/925254 333R2915 333-R2915 20-925743 20925743 20925254 20-925254

Description

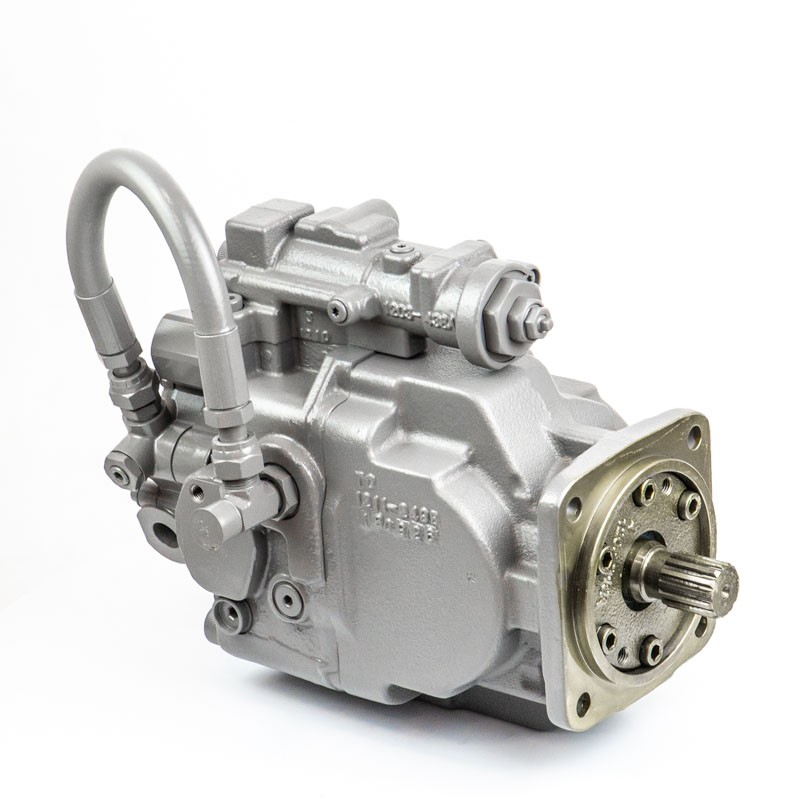

Main Hydraulic Piston Pump 80cc 343bar (fits JCB) - OEM 333/R6486

OEM-quality main variable displacement axial piston hydraulic pump 80 cc for JCB 808X Series mini excavators and JZ Series excavators. The axial piston pump is the heart of the machine's hydraulic system - it generates the power required to simultaneously operate the tracks, swing and rapid attachment work cycles. Its robust construction allows stable operation at extreme pressures up to 343 bar, making it an ideal solution for machines working in the toughest terrain. OEM quality - perfect fit and performance identical to the original factory component.

Technical Specification:

Part Type Variable displacement axial piston pump
Parts Category Hydraulic System / Main Hydraulic Pump
Part Number 333/R6486
Displacement 80 cc/rev
Maximum Flow 200 l/min
Maximum Pressure 343 bar
Number of Sections 1
Ports 1 suction port · 1 pressure port
Quality OEM (first fit quality)

Application (JCB Machines):

Mini Excavators
808X Series
8080 [T2] (2003-2009)  ·  8085 ZTS [T3] (2010-2014)
Tracked Excavators
JZ Series
JZ 70 Series  ·  JZ 80 Series
Workshop Technical Tip: Pumps with a 200 l/min output generate enormous internal friction at start-up. Before fitting, always check that the suction line is clear and the entire hydraulic system is clean. The critical step is pre-filling the pump housing with clean hydraulic oil before starting the engine - running dry at 343 bar will destroy the piston bores almost instantly. It is also recommended to renew the main filter and check the pilot control pressure after installation. Also inspect the condition of the drive shaft and coupling - any runout or play will transfer to the new pump and shorten its service life.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 333/R6486

Product Details
333/R6486

Data sheet

Machine type
EXCAVATOR
MINIEXCAVATOR
Machine
JCB
