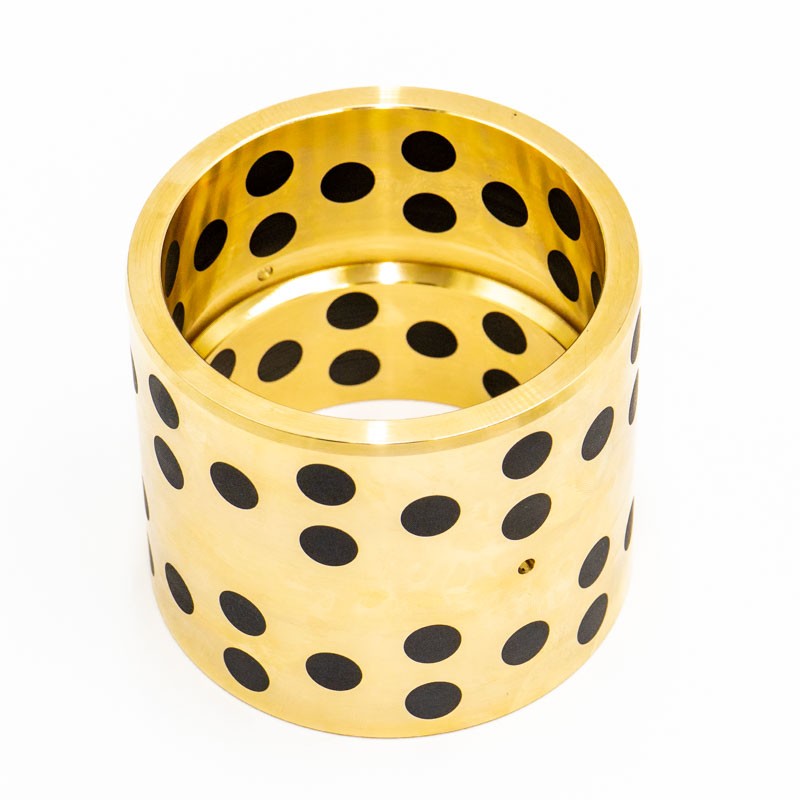

Perforated Boom Bush JS/JZ Excavators (fits JCB) - AZERI PARTS 831/10291
High-quality perforated boom bush by AZERI PARTS for JCB JS and JZ series excavators. The bush provides the plain bearing in the boom pin joint, carries the load and prevents direct wear of the pin and the arm eye. The perforation (grease holes/grooves) ensures even grease distribution across the whole working surface, extending joint life and reducing play. It is a service item - a worn bush shows up as play in the boom, knocking and uneven arm movement.
Technical Specification:
| Part Type |
Boom bush - perforated |
|---|
| Parts Category |
Attachment / Boom and Arm / Bushes and Pins |
|---|
| Part Number |
831/10291 |
|---|
| Design |
Perforated (with grease holes/grooves) |
|---|
| Quality |
AZERI PARTS (aftermarket) |
|---|
Application:
Wheeled excavators
JS200W (JCB / Perkins / Isuzu engines, 1998-2025)
Tracked excavators JS
JS200 · JS205 · JS210 · JS220 · JS235 · JS240 · JS260
Tracked excavators JZ
JZ235 · JZ255
Workshop Technical Tip: Boom bushes are an interference fit - use a press or a puller with a suitable mandrel, never drive the bush in on one point, as this risks deforming or cracking it. When fitting a perforated bush, make sure the grease holes/grooves line up with the grease channel and grease nipple - a misaligned hole cuts off the grease supply and accelerates wear. When replacing bushes, always check the pin condition - a worn or scored pin will quickly destroy a new bush, so the bush and pin are often replaced as a set. After fitting, grease the joint until grease flows out, flushing out contaminants. Remember to grease regularly per the JCB schedule - it is the cheapest way to ensure long joint life on attachment pivots.
