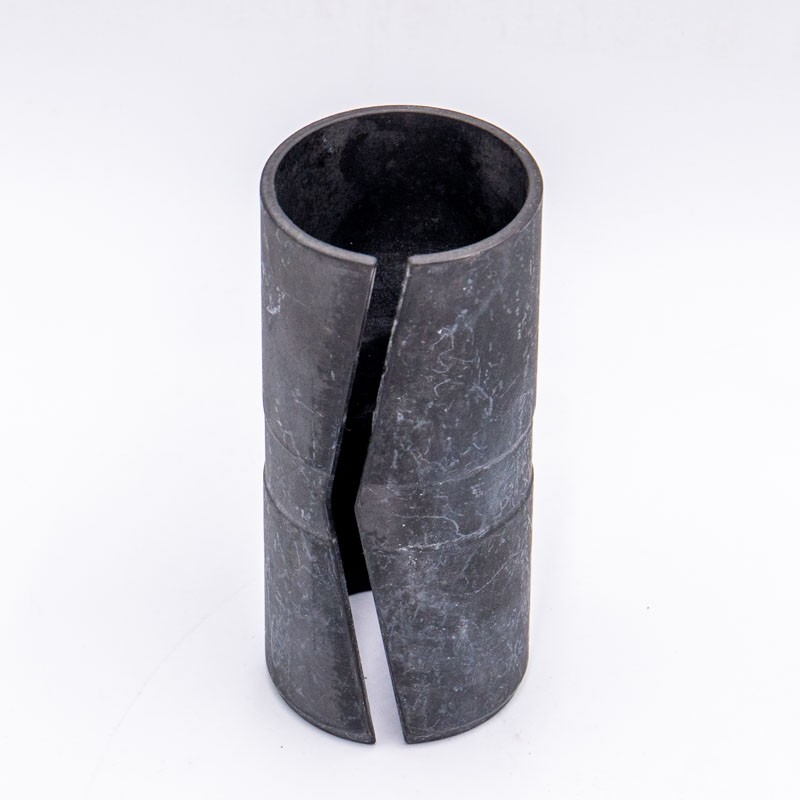

Spring Steel Loader Arm Bush (fits JCB) - GENUINE 1208/0023
Genuine spring steel bush (split/cut type) for front bucket mounting for a wide range of JCB machines. This precision component forms the pin joint connecting the front bucket to the loader arm. The longitudinal split allows the bush to be fitted with a spring interference — providing constant, reliable contact against the pin, eliminating play in the loader arm kinematics and protecting the bores from being wallowed out. It acts as a replaceable wear layer between the pin and the machine structure. Manufactured from hardened high-tensile steel for excellent resistance to surface pressure and wear. OEM quality — perfect fit and durability identical to the original factory component.
Technical Specification:
| Part Type |
Spring steel bush (split/cut type) |
|---|
| Parts Category |
Loader Arm / Front Bucket Mounting |
|---|
| Part Number |
1208/0023 |
|---|
| Inner Diameter (ID) |
45 mm |
|---|
| Outer Diameter (OD) |
52 mm |
|---|
| Length |
114 mm |
|---|
| Material |
Hardened steel (split bush) |
|---|
| Quality |
OEM (first fit quality) |
|---|
Application (JCB Machines):
Backhoe Loaders
1400/1550/1700 Series · 210/212 Series · 214/215/217 Series
2CX Series · 3/3C/3CS Series · 3CX Compact · 3CX Entry Level (Global)
3CX Series · 3D/3DS Series · 3DX Series
4/4C/4CN Series · 4CX Series · 4DX Series · 5CX Series
Rough Terrain Forklifts
926 Series · 930 Series · 940 Series · 950 Series
Telescopic Handlers
504 · 505 · 506 · 508 · 510 · 520 · 525 · 526 · 527 · 530 · 535 · 537 · 540 · 550 Series
Tracked Excavators
800 Series: 805 · 806 · 807 · 808
Wheeled Loaders
410 Series · 411 Series · 412/412S Series · 415 Series
Workshop Technical Tip: The 114 mm length means the bush stabilises the pin over a large contact area — this is critical when working with heavy materials where the forces transmitted through the joint are particularly high. A worn bush shows up as play and knocking in the bucket during loading and increased vibration through the arm. Always check the condition of the pin when replacing the bush — a pin with ridges or ovality will destroy a new bush rapidly. Fit the bush using a suitable driver or press — never drive it in directly with a hammer, as this can deform the spring split. Regular greasing through the nipples as per the operator's manual will ensure smooth joint operation and maximise service life.
