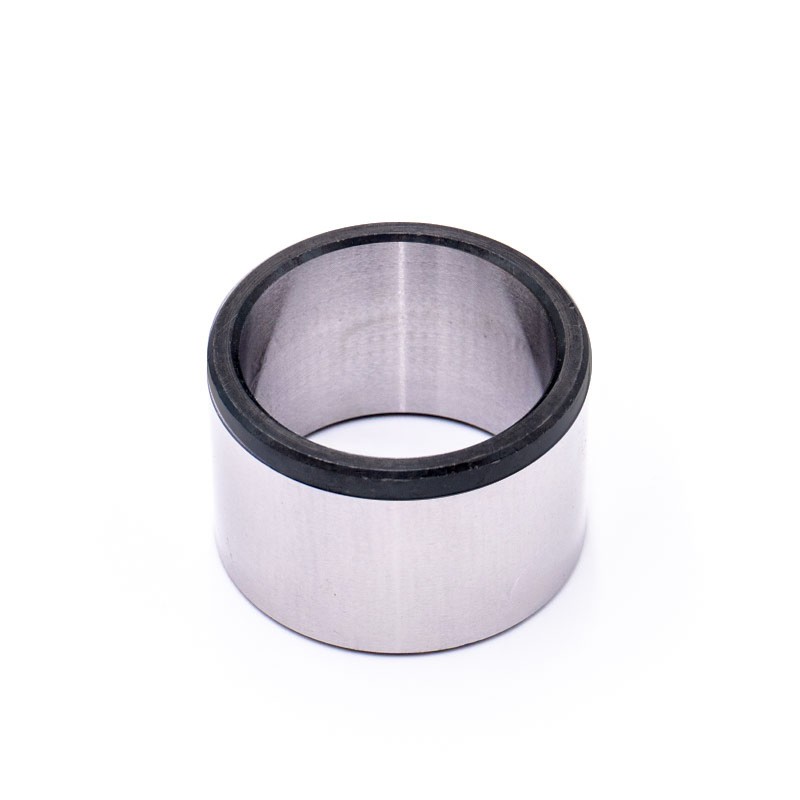

Cylinder BOOM bushing 50x60x40mm (fits JCB) - AM

Cylinder BOOM bushing 50x60x40mm (fits JCB) - AM

809/00126
14.70 zł
Tax included

11.95 zł tax excl.

3 3 By purchasing this product, you will earn points exchangeable for a discount voucher worth 0.30 złfor your next order.

Quantity
Available

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp
Related products
Photo Title Reference Brand Price
JCB Cylinder rod 65x1291.5mm - AZERI PARTS JCB Cylinder rod 65x1291.5mm - AZERI PARTS 590/40648 Azeri Parts 1,340.55 zł
JCB Pin Pivot ram tilt - telescopic handler GMOVE 49.9x187 JCB Pin Pivot ram tilt - telescopic handler GMOVE 49.9x187 811/90197 GMOVE 69.05 zł
JCB Cylinder rod 65x1291.5mm - AZERI PARTS
JCB Cylinder rod 65x1291.5mm - AZERI PARTS
Azeri Parts • 590/40648
1,340.55 zł
JCB Pin Pivot ram tilt - telescopic handler GMOVE 49.9x187
JCB Pin Pivot ram tilt - telescopic handler GMOVE 49.9x187
GMOVE • 811/90197
69.05 zł
Show all related products ↓

Alternative part numbers : 80900126 809-00126

Description

BOOM Cylinder Bushing 50x60x40mm (fits JCB) - AM 809/00126

High-quality, induction-hardened boom cylinder bushing (main boom lift cylinder rod end / eye bushing) by AM with dimensions of 50 x 60 x 40 mm. This component is designed specifically for JCB construction, agricultural, and industrial machinery. The mounting of the main lift cylinder (BOOM) is responsible for raising the entire arm and attachment system, subjecting it to extreme, continuous vertical loads. The use of specialized wear-resistant alloy steel eliminates dangerous structural play, protects the cylinder eye from ovalization, and restores full machine stability during operation.

Zonal Hardness 54-62 HRC: The bushing undergoes an advanced heat treatment process. The working surface layer (both internal and external), with a hardness of up to 62 HRC, guarantees powerful resistance to galling and abrasive wear caused by dust, sand, or water. At the same time, the core of the bushing retains its ductility and toughness, which dampens sudden pressure spikes in the hydraulic system and prevents the component from cracking under heavy load.

Technical Specification:

  • Part type: Main boom lift cylinder eye bushing.
  • Quality class: Premium (aftermarket replacement compliant with strict JCB technological standards).
  • Inner diameter: 50 mm.
  • Outer diameter: 60 mm.
  • Bushing width / height: 40 mm.
  • Surface hardness: 54 - 62 HRC (induction hardened).
  • Manufacturer/Brand: AM.
  • Part number: 809/00126 (80900126).

Compatibility with JCB Machines:

Machine CategorySeries and Models
Articulated Dump Trucks Series: 714, 718, 722, 726
Backhoe Loaders Series: 3CX, 4CX, 5CX, 2DX, 3DX, 210/212, 214/215/217, 3/3C/3CS, 4/4C/4CN, 3CX Entry Level (Global)
Industrial Forklifts Teletruk Series (TLT): TLT 20 (Diesel/Gas), TLT 25 (Diesel/Gas), TLT 27 (Diesel/Gas), TLT 30 (Diesel/Gas/Electric), TLT 35 (Diesel), TLT 55 (Gas), TLT 60 (Gas), TLT 66 (Diesel/Gas), TLT 77 (Diesel)
Mini Excavators Series: 802X, 803X, 804X, 805X, 806X, 808X
Telescopic Handlers Wide range of 500 series: 504, 505, 506, 508, 509, 510, 512, 514, 515, 520, 523, 524, 525, 526, 527, 528, 530, 531, 532, 533, 535, 536, 537, 538, 540, 541, 542, 550
Telescopic Wheel Loaders Series: TM 100, TM 200, TM 300
Tracked Excavators JS Series (Tracked): JS 30, JS 200, JS 210, JS 220, JS 235
Wheeled Excavators JS Series (Wheeled): JS 130 Wheeled, JS 145 Wheeled, JS 160 Wheeled, JS 200 Wheeled
Wheeled Loaders Series: 406, 407, 409, 410, 411, 446, 456
Workshop Tip: The mounting position of the main boom lift cylinder (BOOM) is a critical point of the machine's structure. Excessive play in this area causes the entire boom to sag, generates mechanical impacts when digging, and drastically accelerates the wear of the hydraulic cylinder gland seals, leading to oil leaks.

Golden rules for proper installation:
1. Pin verification: Always check the condition of the main pin (Ø 50 mm). Pressing a new AM bushing onto a worn, scratched, or unevenly worn pin is counterproductive – the new bushing will quickly suffer damage and premature wear.
2. Safe seating (hardened steel): The working layer with a hardness of up to 62 HRC is highly susceptible to chipping or cracking if struck directly with a steel hammer. For installation, strictly use a hydraulic press (screw puller) or a thick brass or copper drift. It is excellent practice to pre-cool the bushing in dry ice or a freezer (thermal contraction) beforehand, allowing it to slide into the cylinder eye without resistance.
3. Initial lubrication and servicing: Before assembling the pin, thoroughly clean and generously fill the internal lubrication grooves of the bushing with fresh grease (lithium-calcium grease with molybdenum disulfide - MoS2 is highly recommended). Regular lubrication of this point extends the joint's service life by several hundred operating hours, effectively flushing out dirt and preventing galling.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 809/00126

Product Details
809/00126

Data sheet

Machine type
EXCAVATOR
MINIEXCAVATOR
TELESCOPIC HANDLER
Outer bush diameter (mm)
60
Inner bush diameter (mm)
50
Bush height (mm)
40
Bush material
STEEL
Machine
JCB
