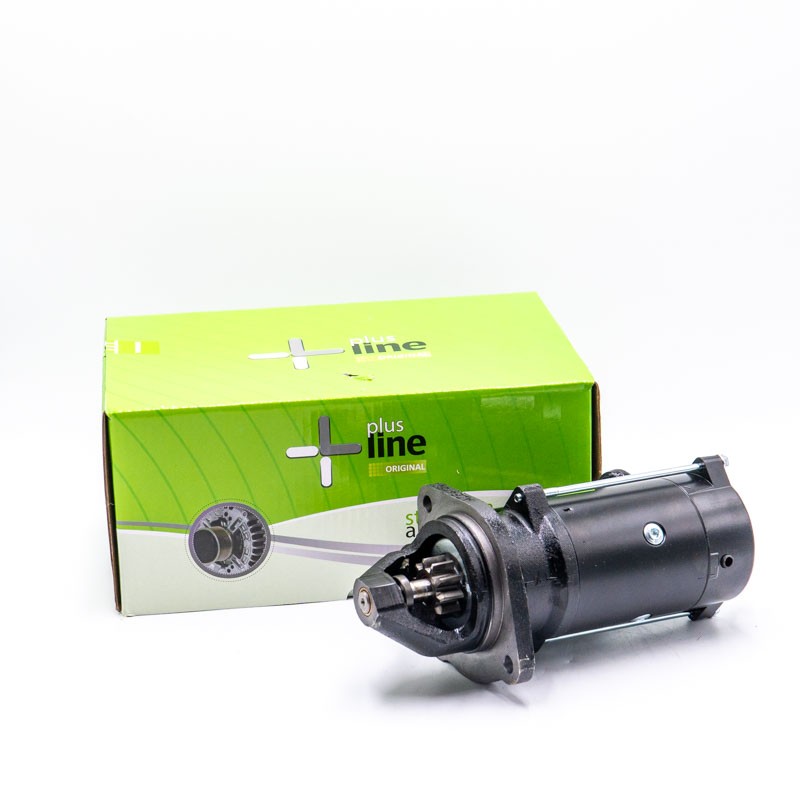

Planetary Starter Motor Perkins 3.2 kW (fits CAT) - PLUS LINE 714/40531

225-3149
674.04 zł
Tax included

548.00 zł tax excl.

182 182 By purchasing this product, you will earn points exchangeable for a discount voucher worth 18.20 złfor your next order.

Quantity
Available

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 2253149 312-7540 3127540 329-0290 3290290 3575203 605002

Description

Planetary Starter Motor Perkins 3.2 kW (fits CAT) - PLUS LINE 714/40531

High-quality 12V / 3.2 kW planetary starter motor, PLUS LINE grade, for Perkins engines fitted in Caterpillar machinery. The planetary gear design delivers compact dimensions, lower weight and higher cranking torque at reduced current draw — ensuring reliable starts even in cold conditions or with a partially discharged battery. PLUS LINE quality combines premium performance with a competitive price — full interchangeability with the OEM component and precise fit without modification. Replaces original CAT part numbers: 2253149, 3127540, 3290290, 3575203, 3653422.

Technical Specification:

Part Type Planetary starter motor
Parts Category Electrical System / Engine Starting
CAT Part Numbers 2253149, 3127540, 3290290, 3575203, 3653422
Voltage 12 V
Power 3.2 kW
Number of Teeth 10
Spigot Diameter 89 mm
Pinion Home Position 29.5 mm
B+ Terminal Thread M8
No. of Mounting Holes 3
Mounting Position 40°
Rotation CW (Clockwise)
Engine Perkins
Quality PLUS LINE

Application (Caterpillar Machines):

Backhoe Loaders 414E, 416C, 416D, 416E, 416F, 420D, 420E, 420F, 422E, 422F, 424D, 426C, 428C, 428D, 428E, 428F, 430D, 430E, 430F, 432D, 432E, 432F, 434E, 434F, 436C, 438C, 438D, 442D, 442E, 444E, 444F
Telehandlers TH62, TH63, TH82, TH83, TH103
Skid Steer / Compact Track Loaders 259B3, 267B, 277C, 277C2, 279C, 279C2, 287C, 287C2, 289C, 289C2, 297C, 299C, 236B, 236B3, 242B3, 246C, 252B, 252B3, 256C, 262C, 262C2, 268B, 272C
Workshop Technical Tip: Before fitting the new starter motor, inspect the ring gear teeth on the flywheel — worn or chipped teeth will rapidly destroy the new pinion. Also check the battery condition and earth cable connections — a 3.2 kW starter demands a low-resistance circuit: a weak battery or corroded terminals will overload the windings and cause premature failure. After installation, verify that the pinion end float and the clearance between pinion and ring gear are within specification. Note that this starter rotates CW (clockwise) — fitting a starter with the opposite rotation direction will damage the engine. Always verify the OEM part number from your original unit before ordering.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 225-3149

Product Details
225-3149

Data sheet

Engine
CATERPILLAR
Machine
CATERPILLAR
CAT series
3054C
