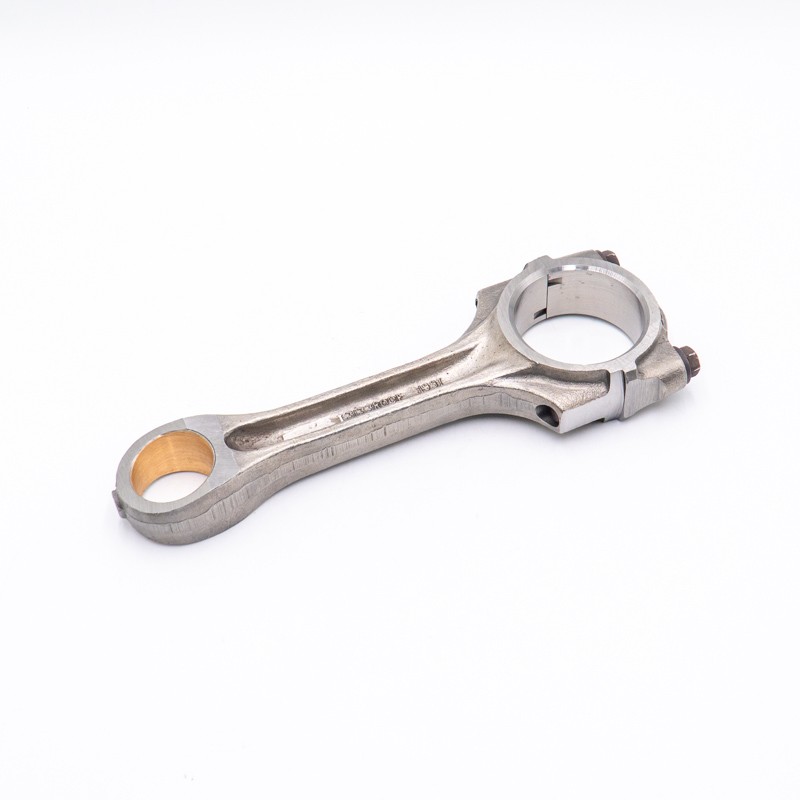

Connecting Rod Pin 39.7mm Perkins 400 Engine (fits JCB) - AZERI PARTS 02/202294
High-quality connecting rod by AZERI PARTS for Perkins 400 Series engines used in JCB machines. The connecting rod is a critical component of the engine's crank-piston assembly - it transfers force from the piston to the crankshaft, converting reciprocating motion into rotary motion. As a component working under enormous dynamic loads, its quality and manufacturing precision are crucial for engine reliability and durability. Gudgeon pin diameter 39.7 mm. AZERI PARTS - proven aftermarket quality at a competitive price.
Technical Specification:
| Part Type |
Connecting rod |
|---|
| Parts Category |
Engine / Crank-Piston Assembly |
|---|
| Part Number |
02/202294 |
|---|
| Engine |
Perkins 400 Series |
|---|
| Gudgeon Pin Diameter |
39.7 mm |
|---|
| Brand |
AZERI PARTS |
|---|
Perkins 400 Engine Series Codes:
AB AD AE AF AJ AK AL AM AP AQ AS AT DC DE DF DG DK NH NK NL NM RF RJ RK RR RS RT VK XK XL XM XN YE YG YH YJ YK
Application (JCB Machines):
Agricultural Tractors
Fastrac 1000 · Fastrac 2000 Series
Backhoe Loaders
210 · 212 · 214 · 215 · 217 · 2CX · 2DX
3 · 3C · 3CS · 3CX · 4 · 4C · 4CN · 4CX
Compact Track Loaders
Robot 1110T · Robot 190T
Rough Terrain Forklifts
926 · 930 · 940
Skid Steer Loaders
Robot 1105 · Robot 1110 · Robot 185 · Robot 190
Telescopic Handlers
506 · 508 · 520 · 524 · 525 · 526 · 527 · 528
530 · 532 · 533 · 535 · 537 · 540 · 550 Series
Telescopic Wheel Loaders
TM 200 · TM 300
Wheeled Excavators
JS 130 · JS 160 · JS 200
Wheeled Loaders
407 · 408 · 409 · 410 · 411 · 412 · 412S
414S · 416 · 416S · 426 · 436
Workshop Technical Tip: The connecting rod works under extreme loads - when replacing, always use new big-end bearing shells and new connecting rod bolts (these are single-use and stretch on tightening). Tighten the rod bolts strictly to the correct torque and angle per Perkins specification - under-tightening risks loosening and engine destruction, over-tightening risks bolt failure. Check the axial and radial clearance after assembly. During an engine rebuild it is recommended to replace the full set of connecting rods and to check each rod for ovality and straightness on a specialist alignment fixture.
