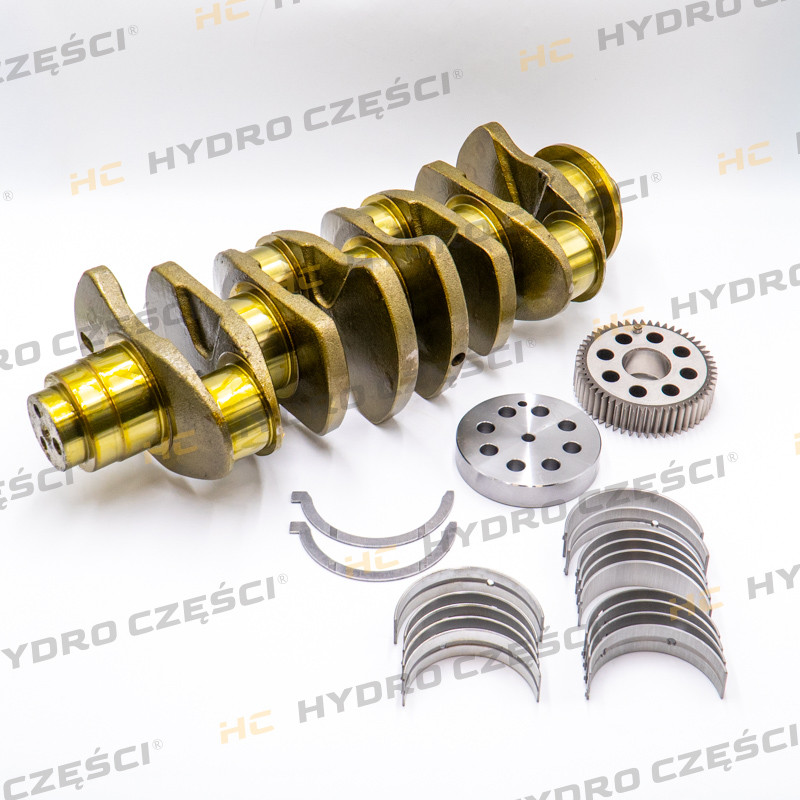

Complete JCB DIESELMAX Crankshaft - Repair Kit
Professional, complete crankshaft assembly dedicated to the JCB DIESELMAX engine series. The kit has been prepared in a "plug & play" formula, meaning all interacting components are factory-fitted and ready for immediate installation. The construction ensures high structural rigidity, repeatable coaxiality, and long, quiet operation of the power unit.
Quality and Workmanship:
- Precision: Micrometrically ground journals ensure perfect interaction with the bearings.
- Dynamics: Computer-balanced to limit internal vibrations, protecting the engine block and auxiliary equipment.
- Technology: Bearings designed to guarantee a stable oil film even at low rotational speeds and high loads.
- Control: Thrust washers with rigorously controlled thickness to maintain proper axial end play.
Kit Contents:
| Component | Part Number |
|---|
| Crankshaft Gear |
320/03132 |
| Crankshaft Hub |
320/03133 |
| Thrust Washers |
320/09208 |
| Bearing Set |
320/09335 |
Application (JCB Machines):
Backhoe Loaders: 3CX, 3DX, 4CX, 5CX
Compact Tracked Loaders: 225T to 320T, MCT
Rough Terrain Forklifts: 926, 930, 940
Skid Steer Loaders: 225 to 330, MC
Telescopic Handlers: 506 to 550 (Loadall)
Wheel Loaders: TM 300, TM 320 [T4i]
Technical Advice: Crankshaft installation requires strict adherence to cleanliness. Before seating the shaft in the block, thoroughly clean the oil galleries and verify the condition of the oil pump. It is recommended to use new connecting rod bolts and tighten them according to the torque specifications and angles specified in the Dieselmax engine service manual.
