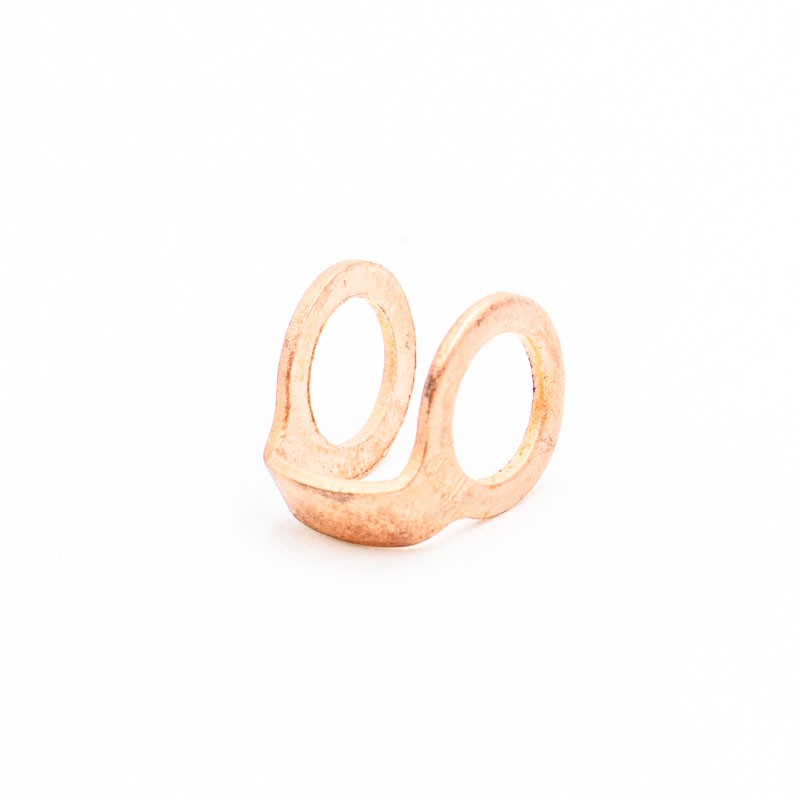

Fuel Return Pipe Copper Seal ISUZU 4HK1 / 6HK1
High-quality copper washer (seal) dedicated to the fuel system of ISUZU engines. This seal is installed on the hollow bolts (banjo bolts) securing the overflow pipe (fuel return) to the injectors or the Common Rail. Made of properly annealed copper, it ensures a perfect fit and the plasticity necessary to achieve a hermetic seal, preventing fuel leaks and pressure drops in the return system.
Product Features:
- Material: Pure technical copper of appropriate hardness, guaranteeing the sealing of the threaded connection under torque tightening.
- Dimension 8.3mm: Perfectly matched to M8 overflow bolts used in modern injectors.
- Wide Application: Fits most modern Isuzu Common Rail engines (J, H, W, U series).
Technical Specifications:
| Isuzu Part Number |
8976009250 (8-97600-925-0) |
|---|
| Inner Diameter |
8.3 mm (for M8 bolt) |
|---|
| Outer Diameter |
15 mm |
|---|
| Material |
Copper |
|---|
Application (ISUZU Engines):
| N/F Series (Trucks) |
4JJ1, 4HK1, 6HK1 |
|---|
| Heavy Machinery (Excavators) |
6WG1, 6UZ1 (e.g., Hitachi ZX450, ZX870, JCB JS330) |
|---|
Technical Tip: Copper washers in the fuel system are single-use items. During tightening, the copper undergoes crushing and "work hardening". Reusing an old washer, even after annealing, carries a high risk of leakage. Before installing a new washer, ensure the contact surface on the injector and the overflow bolt is perfectly clean and free of burrs.
