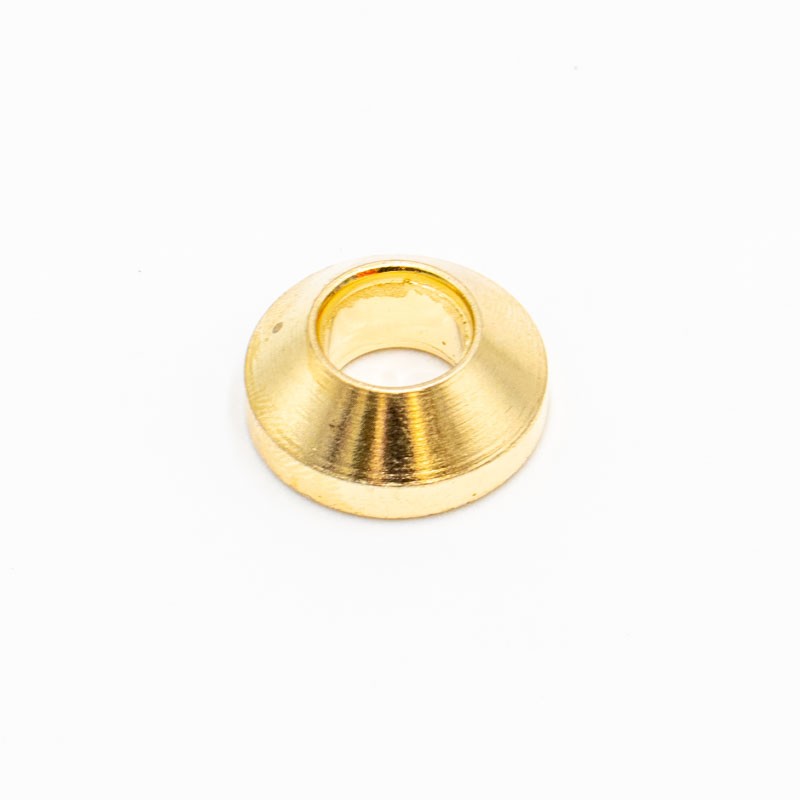

Injector Seal Washer (Conical) ISUZU 4BG1 / 6BG1
High-quality conical injector sealing washer with part number 5153150030. Designed for a wide range of classic ISUZU engines (4B, 6B, and 6S series), used in many construction machines (including Hitachi excavators). This element ensures a tight connection between the injector and the cylinder head, preventing dangerous compression blow-by from the combustion chamber.
Product Features:
- Specific shape: Features a conical design with a height of 7.2 mm, which perfectly adapts to the injector seat during tightening.
- Durable material: Made of copper, characterized by high resistance to extreme temperatures and pressure surges.
- Dimensional precision: Perfectly maintained inner diameter (approx. 9 mm) and outer diameter (19 mm) guarantee proper clamping.
Specification and Application:
| ISUZU Part Number |
5153150030, 5-15315-003-0 |
|---|
| Part Type |
Injector Seal / Conical Washer |
|---|
| Dimensions & Material |
Inner dia.: ~9.0 mm
Outer dia.: 19.0 mm
Height: 7.2 mm
Material: Copper alloy |
|---|
| ISUZU Engines |
4-cyl. Series: 4BB1, 4BD1, 4BG1
6-cyl. Series: 6BB1, 6BD1, 6BG1, 6SA1 |
|---|
| Application (Excavators) |
Hitachi and older generation machines with 4/6BG1, 4/6BD1 engines |
|---|
Technical Tip: Injector washers are strictly single-use components. Before installing a new conical washer, ensure that the injector seat in the cylinder head is perfectly cleaned of carbon buildup using a special seat cutting tool.
