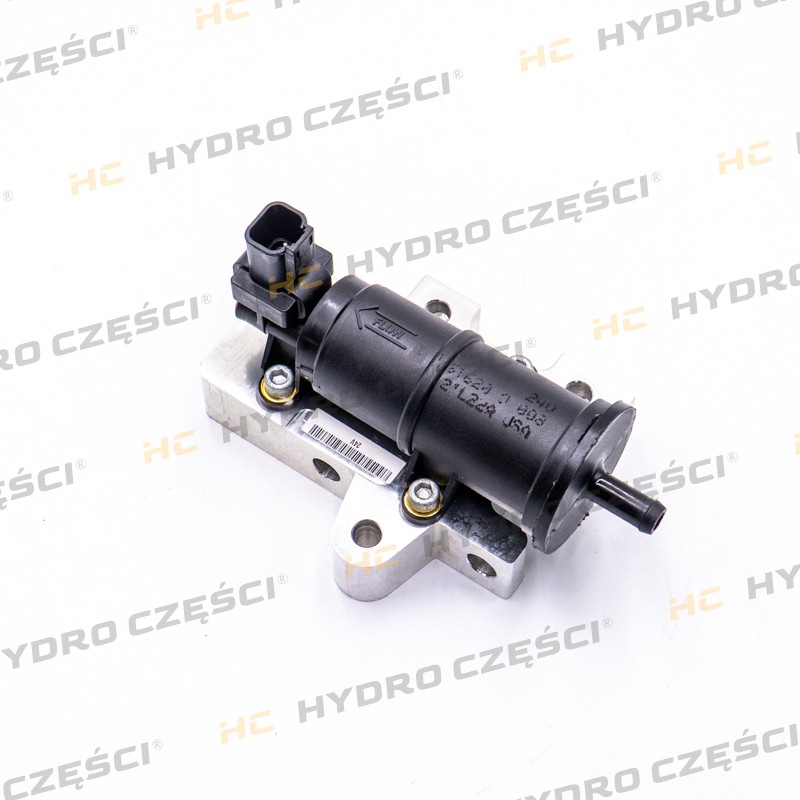

Electric Fuel Transfer Pump 24V (Fits in CAT) - OEM 4465409
A high-performance electric fuel lift pump (primary) manufactured to OEM standards, designed for construction, road, and forestry machinery, as well as industrial engines of the Caterpillar (CAT) brand. The 24V powered module is responsible for the trouble-free pumping of fuel to the main injection system. It ensures optimal pressure and flow continuity, which is essential to protect expensive injection pumps from running dry and the phenomenon of cavitation.
Significant product features:
- OEM Quality: Rigorous maintenance of flow and pressure parameters prevents the engine from stalling during operation under maximum load and facilitates quick starting.
- Hermetic Connector: The use of a reliable 2-pin DT socket guarantees a watertight and dustproof electrical connection, resistant to machine vibrations.
- Fleet Versatility: A versatile component matched to flagship engines (C4.4, C6.6, C7.1), successfully supporting excavators, loaders, rollers, and forestry machines.
Technical Specification:
| Manufacturer / Status |
OEM (Original Equipment Manufacturer) |
|---|
| Operating Voltage |
24V DC |
|---|
| Connector Type |
2-pin DT |
|---|
| System |
Fuel System |
|---|
Compatibility (Machines and Engines):
Engines (Machine, Industrial, Generators): C4.4, C6.6, C7.1, MX35
Tracked Excavators: 312E/F, 313F, 314E/F, 315F, 316E/F, 318E/F, 320, 320 GC, 320E/F, 323, 323E/F, 324E, 325F, 326F, 329E/F, 330F, 335F, 538, 548, 558 (including L, LN, CR, OEM, SA, LRR variants)
Wheeled and Material Handling Excavators: M314F, M316F, M318F, M320F, M322F, M323F, MH3022, MH3024, MH3026
Wheel and Track Loaders: 924K, 930K, 938K, 950K, 962K, 966F, 966F II / 953, 953K, 963, 963K
Dozers (Tracked and Wheeled): D5, D6K2 (LGP, XL), D6N (LGP, XL, OEM) / 814, 814K
Asphalt Pavers: AP500F, AP555F, AP600F, AP655F, AP1000, AP-1000E/F, AP1055, AP-1055E/F, BG1000E, BG1055E
Rollers (Asphalt and Earthmoving): CP-533E, CS-433E, CS-533E / 815, 815K, 816, 816K
Motor Graders and Forestry Machines: 120M 2 / 558, 559C/D, 563C, 573C, 579C/D, 2384C/D, 2484C/D, 2570C, 2670C
Technical Advice: The failure of an electric fuel lift pump is often the result of secondary loading—before installing a new part, be sure to replace the primary fuel filters (separators) and check the intake line from the tank for blockages. Pumping fuel through a filter clogged with debris causes the winding inside the pump motor to burn out..
