JCB Tandem hydraulic main pump 63cc

JCB Tandem hydraulic main pump 63cc

20/925328
9,963.00 zł
Tax included

8,100.00 zł tax excl.

2700 2700 By purchasing this product, you will earn points exchangeable for a discount voucher worth 270.00 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp
Related products
Photo Title Reference Brand Price
JCB Pump coupling - rubber and bolts - OEM JCB JCB Pump coupling - rubber and bolts - OEM JCB 331/25063 OEM 1,906.50 zł
JCB Pump Clutch (rubber only) + Pins and Bolts JCB Pump Clutch (rubber only) + Pins and Bolts 331/25063 AM 490.77 zł
JCB Pump coupling - rubber and bolts - OEM JCB
JCB Pump coupling - rubber and bolts - OEM JCB
OEM • 331/25063
1,906.50 zł
JCB Pump Clutch (rubber only) + Pins and Bolts
JCB Pump Clutch (rubber only) + Pins and Bolts
AM • 331/25063
490.77 zł

Alternative part numbers : 20925328 20-925328

Description

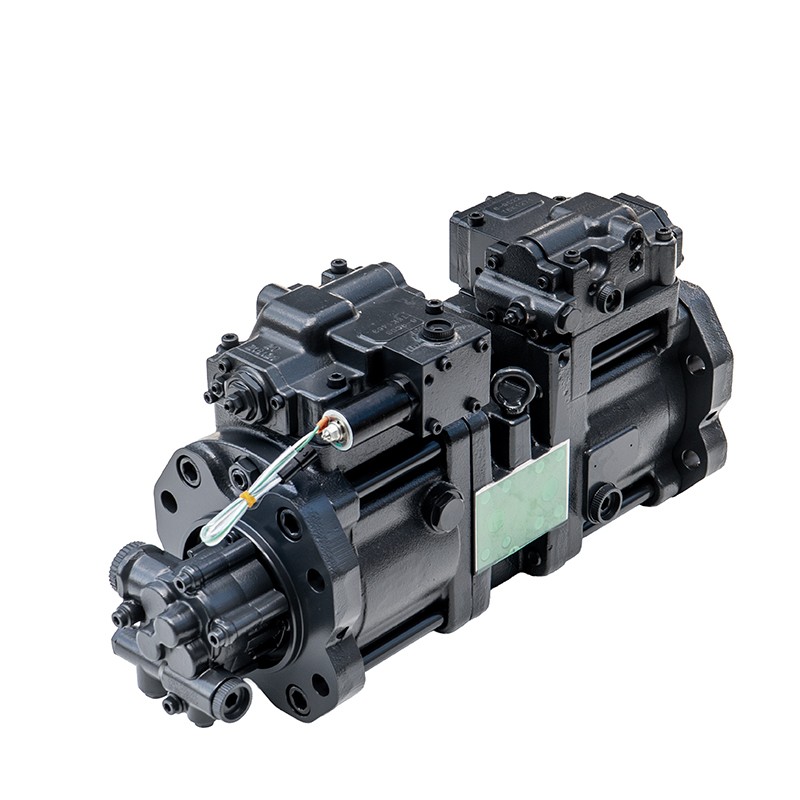

JCB Main Hydraulic Pump (Tandem) 63cc - 20/925328

High-performance double tandem hydraulic pump (axial piston type), designed as the primary power source for JCB crawler excavators weighing approximately 13 tons. The tandem system allows for an efficient split of oil flow, enabling several working functions (e.g., boom lift and swing) to be performed simultaneously without power loss. The robust construction is adapted for very high-pressure operation, guaranteeing speed and precision in the machine's working movements.

Technical Specification:

  • Displacement: 63 cm³ (per section).
  • Pump Type: Double, tandem (piston pump).
  • Direction of Rotation: Right-hand (clockwise).
  • Nominal Pressure: 343 bar.
  • Maximum Input Torque: 343 Nm.
  • Application: Main hydraulic system.

Compatibility:

Machine ModelVariant / Production Period
JCB JS 130 (1995–1995)
JCB JS 130 [T0] Production 1996 – 2006
JCB JS 130LC [T2 JCB] Production 1996 – 2009
Workshop Technical Tip: Installation of a new main pump requires rigorous cleanliness. It is mandatory to replace the hydraulic oil and all filters (suction and return). Remember to prime the new pump housing with clean hydraulic oil before the first engine start. Running a piston pump "dry" (without priming) for even a few seconds results in irreversible seizure of internal components and loss of warranty. After installation, we recommend bleeding the system by performing several slow movements of each machine function.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 20/925328

Product Details
20/925328

Data sheet

Machine type
EXCAVATOR
Machine
JCB
