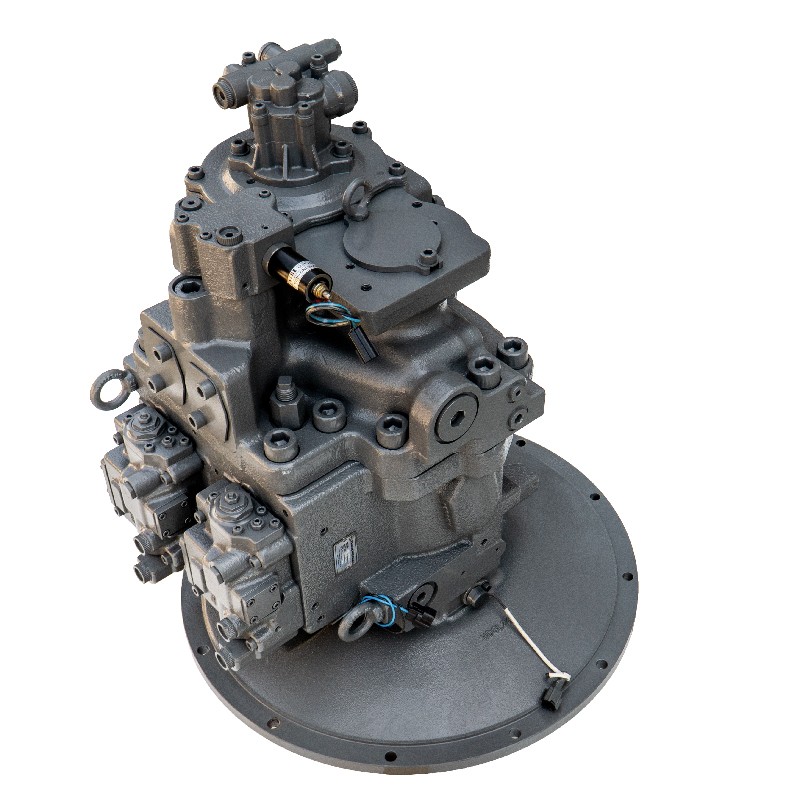

Main Hydraulic Piston Pump 350bar (fits JCB) - OEM 20/925652
OEM-quality main hydraulic pump (variable displacement piston pump assembly) for JCB JS 330 Series tracked excavators. The pump is the "heart" of the machine's hydraulic system - it converts the engine's mechanical power into hydraulic energy, supplying all working functions from boom movements to travel drive. The design provides precise flow control (Load Sensing), translating into smooth operation and fuel economy even under extreme load. Resistant to high working pressures up to 350 bar and prolonged continuous operation. OEM quality - perfect fit and performance identical to the original factory component.
Technical Specification:
| Part Type |
Variable displacement axial piston pump |
|---|
| Parts Category |
Hydraulic System / Main Hydraulic Pump |
|---|
| Part Number |
20/925652 |
|---|
| System |
Variable displacement with power regulator (Load Sensing) |
|---|
| Working Pressure |
up to 350 bar |
|---|
| Quality |
OEM (first fit quality) |
|---|
Application (JCB Machines):
Tracked Excavators
JS 330 Series
JS330 R3/T2 (1997-2006) · JS330 [T2] (2006-2025)
JS330 [T3] (2006-2013)
Workshop Technical Tip: The main hydraulic pump is extremely sensitive to contamination. Before fitting the new pump, always flush the entire hydraulic system and renew the oil and all filters (return, pilot, suction). The most common cause of new pump failure shortly after installation is debris from the previous, failed unit left in the lines or oil cooler. Also remember to pre-fill the new pump housing with clean hydraulic oil before the first start to avoid running dry. After installation, check and adjust the control pressure to the machine's service specification.
