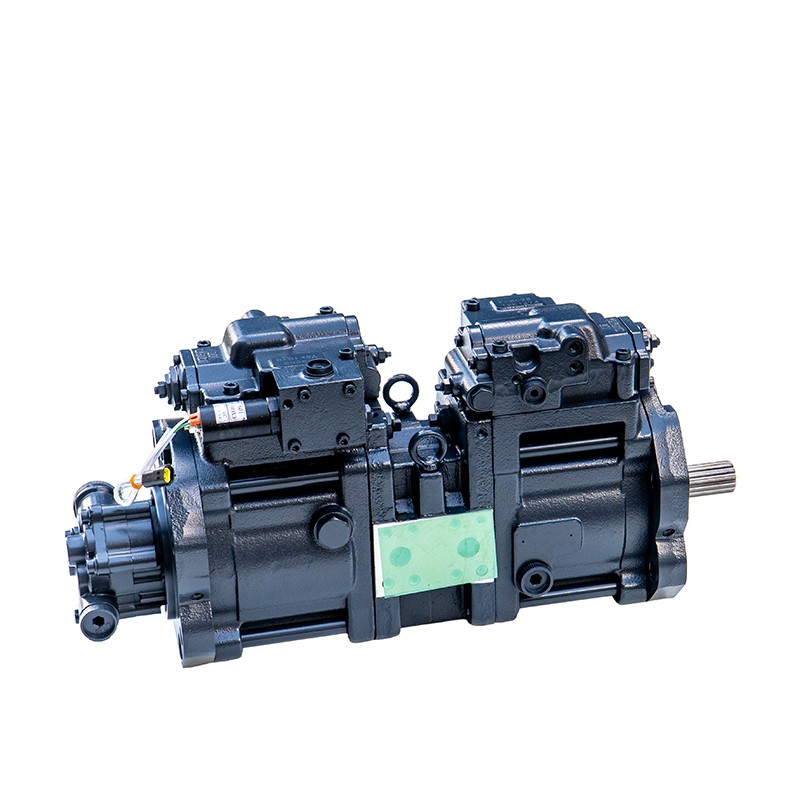

JCB Double Main Hydraulic Pump (Tandem) 63cc - 333/J3310
High-performance tandem double piston pump, serving as the central component of the hydraulic system in JCB crawler excavators. The dual-section design allows for independent powering of hydraulic circuits, which is crucial for simultaneously performing complex work movements (e.g., traveling while operating the boom). The pump is characterized by exceptional resistance to high operating pressures (up to 343 bar) and a precise displacement control system.
Technical Specification:
- Type: Double axial piston pump (tandem).
- Displacement: 63 cc / rev (per section).
- Direction of Rotation: Clockwise (CW).
- Nominal Pressure: 343 bar.
- Max Inlet Torque: 343 Nm.
- Application: Main hydraulic power system.
Compatibility:
| Machine Series | Models and Variants |
|---|
| JCB JS 115 / 130 |
JS115 [T3/T4i], JS130 [T3 SOR/SHA], JS130 [T4i JCB], JS130LC [T3 JCB] (up to 2019) |
| JCB JS 145 / 220 |
JS145 HD [T4i], JS145 [T3/T4i], JS220 [T3 SOR], JS220LC BR (2017–2026) |
| JCB JZ 140 / 141 |
JZ140 [STV/T4i/T4], JZ141 [T4F], JZ141LCD4F (2017–2023) |
Workshop Technical Tip: In tandem-type pumps, it is vital to check the suction line permeability for both sections. Before installation, you must replace the hydraulic filters and the oil with fresh, contaminant-free fluid. The most critical step is priming the pump housing with clean hydraulic oil before starting the engine – running "dry" at 343 bar will destroy the piston surfaces in a fraction of a second. After installation, it is recommended to bleed the system by loosening the pressure lines at low engine speeds.
