Main Hydraulic Pump 2x25cc 230bar (fits JCB) - OEM

20/925375
10,947.00 zł
Tax included

8,900.00 zł tax excl.

2966 2966 By purchasing this product, you will earn points exchangeable for a discount voucher worth 296.60 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 20925375 20-925375 20/925741 20925741 20-925741

Description

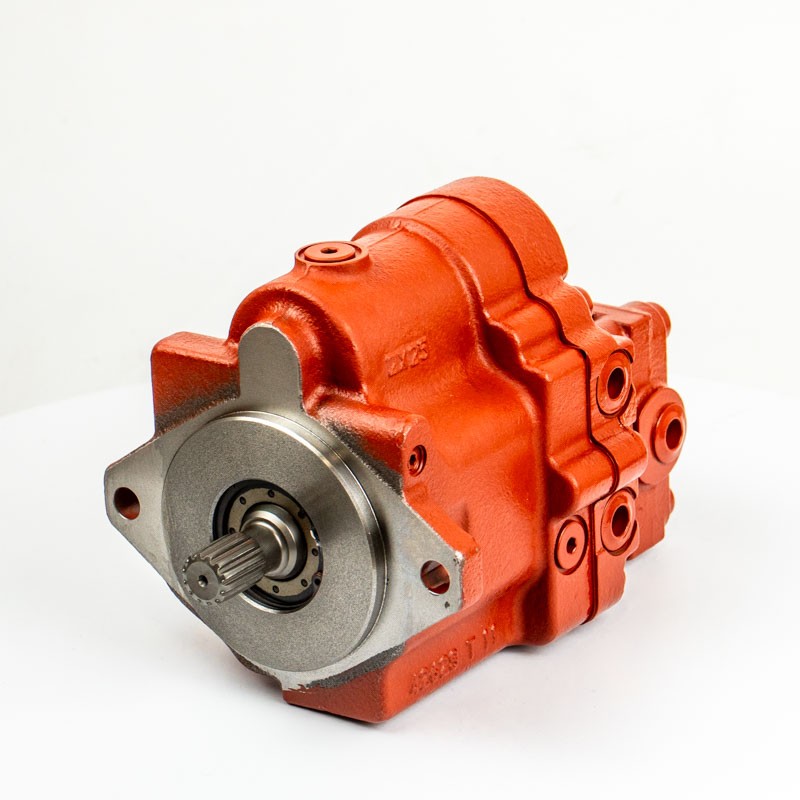

Main Hydraulic Pump 2x25cc 230bar (fits JCB) - OEM 20/925375

OEM-quality twin-section main axial piston hydraulic pump 2×25 cc for JCB 8027 and 8032 series mini excavators. The axial piston pump is the heart of the excavator's hydraulic system — generating working pressure up to 230 bar to supply the boom, dipper and swing cylinders. The twin-section design (2 elements × 25 cc) enables precise flow distribution to different working functions simultaneously, ensuring smooth and responsive operation of all hydraulic functions. OEM quality — perfect fit and performance identical to the original factory component.

Technical Specification:

Part Type Axial piston hydraulic pump, twin-section
Parts Category Hydraulic System / Main Hydraulic Pump
Part Number 20/925375
Number of Sections 2 (twin-section)
Displacement 2 × 25 cc/rev
Flow Rate 37.3 l/min
Maximum Pressure 230 bar
Rotation Clockwise (CW)
Ports 1 suction port · 3 pressure ports
Quality OEM (first fit quality)

Application (JCB Machines):

Mini Excavators
802X Series
8027 ZTS [T2]
Mini Excavators
803X Series
8032 ZTS [T2]  ·  8032Z (2002–2006)
Workshop Technical Tip: Before fitting the new main pump, always check the cleanliness of the entire hydraulic system and renew the oil and filters — contamination from the old, failed pump will destroy the new unit immediately. The critical step during installation is pre-filling the pump housing with clean hydraulic oil before the first start — running an axial piston pump dry, even for a few seconds, causes irreversible damage to the piston bores and valve plate. Also check the condition of the drive shaft and coupling — any runout or play will transfer to the new pump and shorten its service life. After installation, run the machine unloaded for several minutes monitoring for leaks and correct pressure build-up.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 20/925375

Product Details
20/925375

Data sheet

Machine type
MINIEXCAVATOR
Machine
JCB
