JCB Pump main hydraulic 112 cc/rev

JCB Pump main hydraulic 112 cc/rev

KRJ4573
10,947.00 zł
Tax included

8,900.00 zł tax excl.

2966 2966 By purchasing this product, you will earn points exchangeable for a discount voucher worth 296.60 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : KRJ4690 KRJ4573 LNP0186

Description

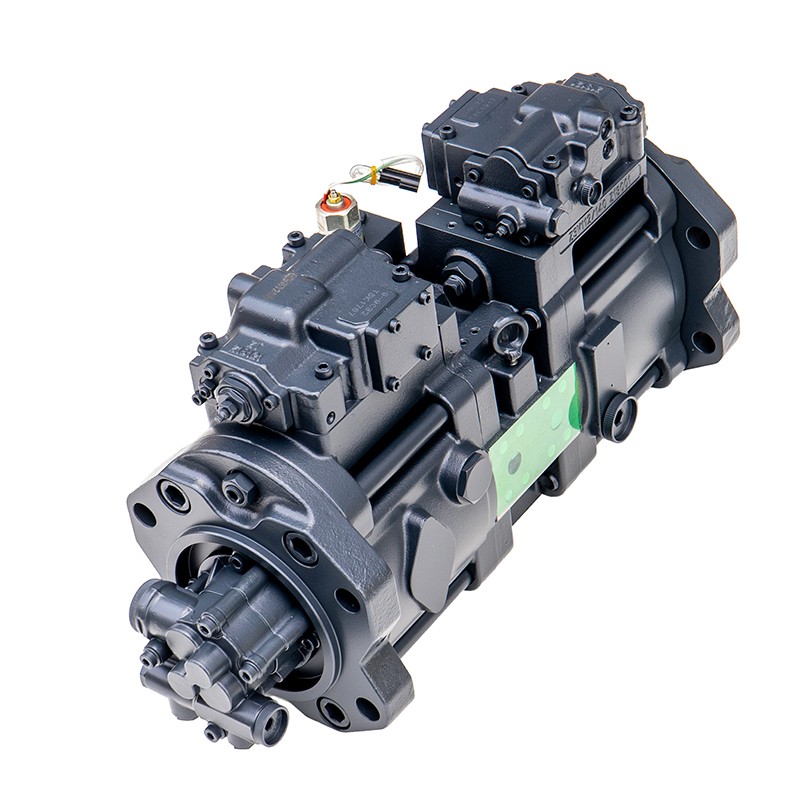

JCB Main Hydraulic Pump (3-section) - KRJ4573

High-performance main hydraulic pump assembly, designed for mid-sized JCB crawler excavators. It is an advanced design combining two variable displacement axial piston sections with an additional gear section (pilot pump). This assembly ensures precise power distribution to individual working functions and the travel system, guaranteeing maximum efficiency while maintaining smooth machine movements.

Technical Specification:

  • Pump Type: Piston + Gear pump.
  • Construction: Axial pistons.
  • Number of elements (sections): 3.
  • Total number of suction ports: 1 (common inlet).
  • Total number of pressure ports: 3 (2 main + 1 pilot).
  • Application: Main hydraulic power supply system.

Compatibility:

Machine TypeModels and Variants
JCB Crawler Excavators JS 200, JS 210, JS 220
Workshop Technical Tip: Due to its 3-section design, this pump requires particular attention to oil quality. The suction port feeds all sections simultaneously, so any leak in the intake (air ingestion) can lead to cavitation and rapid destruction of the entire unit. During installation, ensure that the pressure ports are connected according to the diagram – the gear section (pilot) is responsible for control, while the piston sections provide the working power. Remember to prime the pump housing with oil before the first start!

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: KRJ4573

Product Details
KRJ4573

Data sheet

Machine type
EXCAVATOR
Machine
JCB
