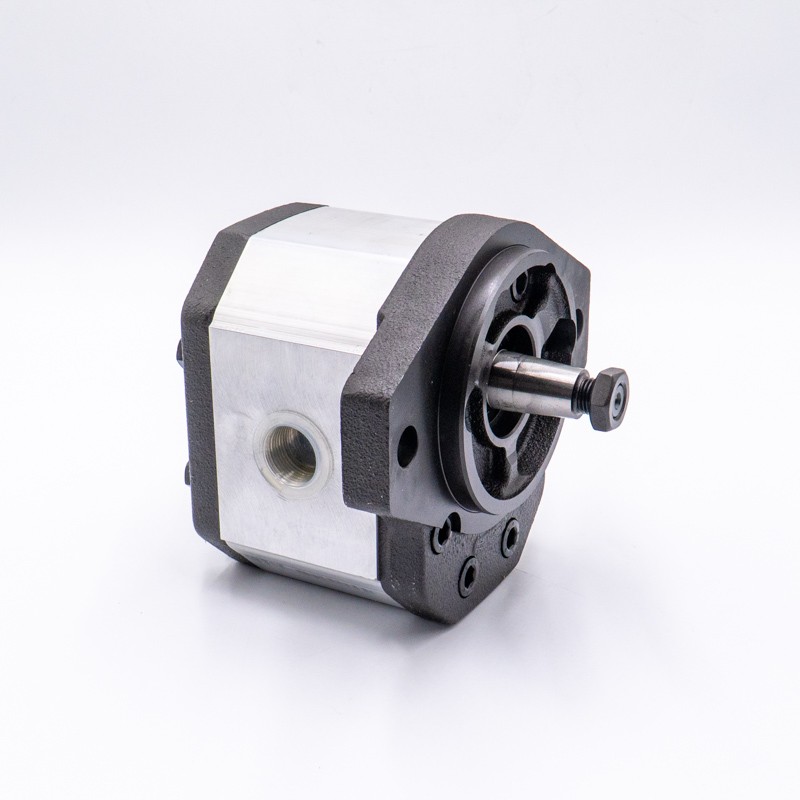

Double-Section Hydraulic Gear Pump 14/24 (1500 RPM) - GMOVE 20/202900
High-quality, double-section hydraulic gear pump by GMOVE, designed for working hydraulic systems and steering assist in JCB construction machinery and forklifts. The pump features a 14 / 24 section configuration and counter-clockwise (CCW) rotation. The body, made of high-strength aluminum alloys combined with precisely matched gears, guarantees stable pressure, high volumetric efficiency, and quiet operation even under full load.
Technical Specification:
- Part type: Double-section hydraulic gear pump.
- Section configuration: 14 / 24.
- Direction of rotation: Counter-Clockwise (CCW).
- Nominal speed of rotation: 1500 RPM.
- Mounting flange / Fitment: Standard SAE-B (2-bolt).
- Reference flow rate: 25 L version.
- Manufacturer/Brand: GMOVE (high-class replacement with OEM-compliant parameters).
JCB Machine Compatibility:
| Machine Category | Models and Variants |
|---|
| Backhoe Loaders |
Series: 210, 212, 2CX |
| Rough Terrain Forklifts |
Series: 921, 926, 930, 940 |
Workshop Tip: Replacing the main pump requires absolute cleanliness. Before installing the new pump, be sure to replace the hydraulic oil filter and check the condition of the old oil – if the previous pump seized up and "shed metal shavings," the entire system must be thoroughly flushed; otherwise, the new pump will fail within its first hours of operation.
Key step during installation: Before first engine startup, manually prime the inside of the new pump with fresh hydraulic oil through the suction port and rotate the shaft several times by hand. A dry run without prior priming will immediately cause the aluminum thrust plates to seize, leading to permanent and irreversible pump damage. Also, make sure the drive's direction of rotation (CCW - counter-clockwise) matches the machine's specification – running the pump in reverse will instantly blow out the shaft seal.
