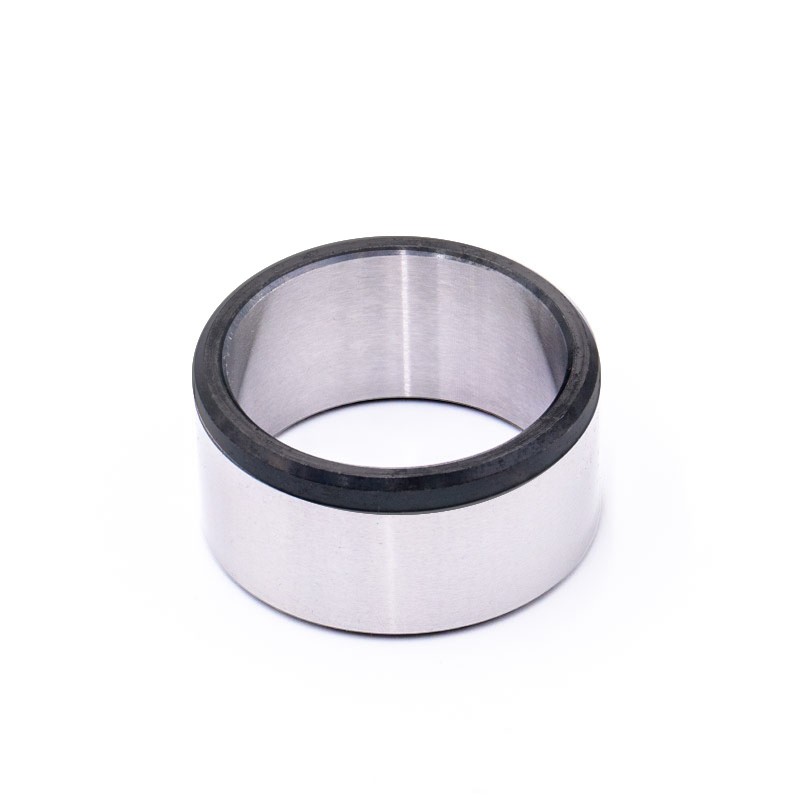

Cylinder bushing DIPPER upper 50x60x30mm (fits JCB) - AM

Cylinder bushing DIPPER upper 50x60x30mm (fits JCB) - AM

809/00127
15.99 zł
Tax included

13.00 zł tax excl.

4 4 By purchasing this product, you will earn points exchangeable for a discount voucher worth 0.40 złfor your next order.

Quantity
Available

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp
Related products
Photo Title Reference Brand Price
Cylinder bush DIPPER 60x70x90mm (fits JCB) - OEM Cylinder bush DIPPER 60x70x90mm (fits JCB) - OEM 809/00179 OEM 72.13 zł
JCB Pin pivot seal - telescopic handler 50mm JCB Pin pivot seal - telescopic handler 50mm 813/00426 AM 4.67 zł
Cylinder bush DIPPER 60x70x90mm (fits JCB) - OEM
Cylinder bush DIPPER 60x70x90mm (fits JCB) - OEM
OEM • 809/00179
72.13 zł
JCB Pin pivot seal - telescopic handler 50mm
JCB Pin pivot seal - telescopic handler 50mm
AM • 813/00426
4.67 zł
Show all related products ↓

Alternative part numbers : 80900127 809-00127

Description

Dipper Cylinder Upper Bushing 50x60x30mm (fits JCB) - AM 809/00127

High-quality, hardened dipper cylinder upper bushing (dipper cylinder rod end/eye bushing) by AM with dimensions of 50 x 60 x 30 mm. This component is designed specifically for JCB construction, agricultural, and industrial machinery. The upper mounting of the arm cylinder performs continuous pivoting work under massive hydraulic pressure. The use of wear-resistant alloy steel guarantees a long component lifespan, effectively eliminates play in the pin connection, and restores factory smoothness and precision to the working arm control.

Zonal Hardness 54-62 HRC: The bushing undergoes advanced heat treatment, giving the working surface a hardness of up to 62 HRC. This ensures maximum protection against wear, galling, and ovalization caused by sand and dust particles. The ductile core of the bushing perfectly absorbs impacts and bending stresses, preventing the component from cracking during heavy work in hard ground.

Technical Specification:

  • Part type: Dipper cylinder upper eye bushing.
  • Quality class: High-quality aftermarket replacement meeting strict JCB material standards.
  • Inner diameter: 50 mm.
  • Outer diameter: 60 mm.
  • Bushing width / height: 30 mm.
  • Surface hardness: 54 - 62 HRC.
  • Manufacturer/Brand: AM.
  • Part number: 809/00127 (80900127).

Compatibility with JCB Machines:

Machine CategorySeries and Models
Articulated Dump Trucks 714 Series: 714 (models from 2000 - 2015)
Backhoe Loaders Series: 3CX, 4CX, 2CX, 2DX, 210/212, 214/215/217, 3/3C/3CS, 4/4C/4CN
Compact Track Loaders Robot 180T Series: 180T H/F [T2] (2005-2009), 180T H/F [T3] (2008-2011), 180T [T2] (2005-2009), 180T [T3] (2008-2011)
Mini Excavators Series: 805X, 806X
Skidsteer Loaders Robot Series: Robot 160, Robot 170, Robot 180
Telescopic Handlers Wide range of 500 series: 504, 505, 506, 508, 509, 510, 512, 514, 515, 520, 523, 524, 525, 526, 527, 528, 530, 531, 532, 533, 535, 536, 537, 538, 540, 541, 542, 546, 550, 555, 560
Telescopic Wheel Loaders Series: TM 200, TM 300
Wheeled Excavators Hydradig 110W Series: 110W Pothole Pro [STV], 110W Pothole Pro [T4F], 110W [STV], 110W [T4F], 110W [T4i], 110W [UN3]
Wheeled Loaders Series: 406, 407, 409, 410, 411, 413/413S, 417HT, 418/418S
Workshop Tip: Delaying the replacement of a worn cylinder eye bushing leads to the transfer of play onto the pin, which consequently destroys the structure of the cylinder's metal eye itself. Ignoring this problem generates knocking sounds during changes in the arm's working direction and accelerates the wear of the cylinder's gland hydraulic seals.

Golden rules of cylinder bushing installation:
1. Pin verification: Always inspect the condition of the mating pin (Ø 50 mm). Installing a new bushing onto a worn, scratched, or oval-shaped pin will void the repair – the new bushing will wear out very quickly.
2. Correct installation (protecting the hardened layer): Bushings with a surface hardness of up to 62 HRC have a structure sensitive to direct, localized impacts from a steel hammer, which risks chipping the material. Use a hydraulic press (bushing puller) or a brass/copper drift for installation. It is also good practice to cool the bushing in a freezer or dry ice prior to installation to induce thermal contraction.
3. Initial lubrication: Before inserting the pin, ensure that the internal lubrication grooves of the bushing are clean and fill them generously with high-quality grease (lithium-calcium grease with molybdenum disulfide - MoS2 is recommended). Regular maintenance of the lubrication point protects the system against the ingress of water and sand particles.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 809/00127

Product Details
809/00127

Data sheet

Machine type
BACKHOE LOADER
MINIEXCAVATOR
ROBOT
TELESCOPIC HANDLER
WHEELED LOADER
Outer bush diameter (mm)
60
Inner bush diameter (mm)
50
Bush height (mm)
30
Flanged bush
NO
Bush material
STEEL
Machine
JCB
