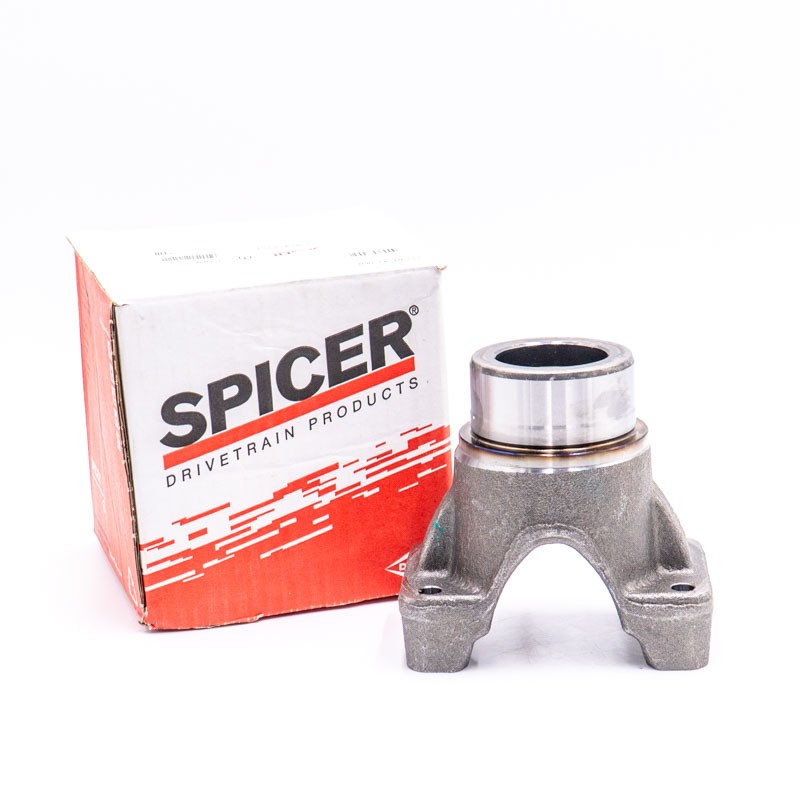

Pinion Shaft Flange Yoke (fits JCB) - SPICER 333/D1542
High-quality pinion shaft flange yoke by SPICER (Dana) — the world-leading manufacturer of driveline components for construction and agricultural machinery. This component forms the critical connection between the propshaft (cardan shaft) and the axle differential in JCB telescopic handlers. Forged and heat-treated from high-tensile steel, the flange yoke transmits the full engine torque to the machine's axles, ensuring reliable 4x4 drivetrain performance in demanding off-road conditions. Using a genuine SPICER component guarantees precise fitment, vibration-free operation and OEM-level durability.
Technical Specification:
| Part Type |
Pinion shaft flange yoke (forged hardened steel) |
|---|
| Parts Category |
Drivetrain / Axle / Differential |
|---|
| Part Number |
333/D1542 |
|---|
| Material |
Forged high-tensile hardened steel |
|---|
| Brand |
SPICER (Dana) |
|---|
| Quality |
OEM / Genuine |
|---|
Application (JCB Machines):
| Telescopic Handlers |
512 Series, 513 Series, 550 Series, 555 Series (5.5), 558 Series, 560 Series |
|---|
Workshop Technical Tip: The pinion shaft flange yoke operates under high torsional and impact stresses — especially during rapid acceleration and braking under heavy fork loads. Regularly check for axial and radial play in the pinion shaft: excessive play produces a characteristic metallic knock on take-off and can damage the pinion seal housing, ultimately leading to axle oil leaks. When replacing the flange yoke, always inspect the pinion shaft oil seal and taper roller bearings at the same time — replace them simultaneously to avoid repeat disassembly. After reassembly, set the pinion bearing preload to manufacturer specification and refill the axle with the correct oil grade approved for wet brake axles.
