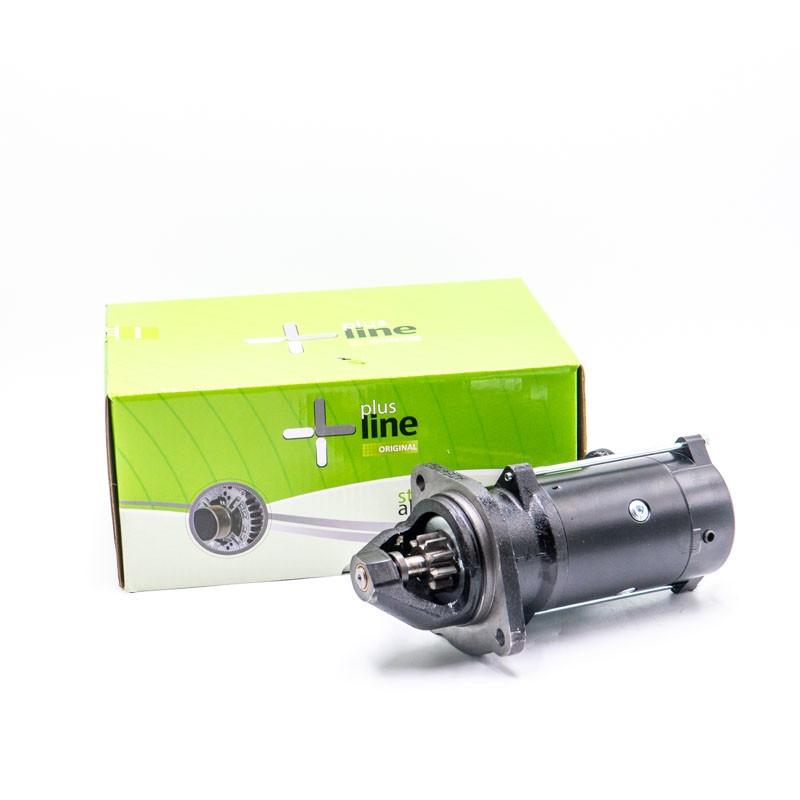

Planetary starter motor 3.2 kW (fits JCB) - PLUS LINE

714/40531
674.04 zł
Tax included

548.00 zł tax excl.

182 182 By purchasing this product, you will earn points exchangeable for a discount voucher worth 18.20 złfor your next order.

Quantity
Available

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 714/40231 71440531 714-40531 71440231 714-40231

Description

Planetary Starter Motor 3.2 kW (fits JCB) - PLUS LINE 714/40531

High-quality 12V / 3.2 kW planetary starter motor, PLUS LINE grade, for Perkins engines fitted in JCB machinery. The planetary gear design delivers a compact build, lower weight and higher efficiency compared to conventional starters — generating greater cranking torque at lower current draw for reliable cold-weather starting. PLUS LINE quality combines premium performance with a competitive price — full interchangeability with the OEM component and precise fit without modification. Replaces OEM part numbers: 714/40531, 714/40159R, 714/40231, 714/40536.

Technical Specification:

Part Type Planetary starter motor
Parts Category Electrical System / Engine Starting
Part Number 714/40531
Cross Reference Numbers 714/40159R, 714/40231, 714/40536
Voltage 12 V
Power 3.2 kW
Number of Teeth 10
Spigot Diameter 89 mm
Pinion Home Position 29.5 mm
B+ Terminal Thread M8
No. of Mounting Holes 3
Mounting Position 40°
Rotation CW (Clockwise)
Engine Perkins
Quality PLUS LINE

Application (JCB Machines):

Backhoe Loaders 210/212 Series, 214/215/217 Series, 2CX Series, 3/3C/3CS Series, 3CX Series, 4/4C/4CN Series, 4CX Series
Compact Track Loaders Robot 1110T Series, Robot 190T Series
Rough Terrain Forklifts 926 Series, 930 Series, 940 Series
Skidsteer Loaders Robot 1110 Series, Robot 190 Series
Telescopic Handlers 506, 508, 520, 524, 525, 526, 527, 528, 530, 532, 533, 535, 537, 540, 541, 550 Series
Telescopic Wheel Loaders TM300 Series (TM300 [T2], TM300, TM300FM 2003–2007)
Wheeled Loaders 407 Series, 408 Series, 409 Series
Workshop Technical Tip: Before fitting the new starter motor, inspect the ring gear teeth on the flywheel — worn or chipped teeth will rapidly destroy the new pinion. Also check the battery condition and earth cable connections — a 3.2 kW starter demands a low-resistance circuit: a weak battery or corroded terminals will overload the windings and cause premature failure. After installation, verify that the pinion end float and the clearance between pinion and ring gear are within specification — incorrect setup is the most common cause of noisy operation and premature wear. Note that this starter rotates CW (clockwise) — fitting a starter with the opposite rotation direction will damage the engine.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 714/40531

Product Details
714/40531

Data sheet

Machine type
BACKHOE LOADER
TELESCOPIC HANDLER
WHEELED LOADER
Machine
JCB
