ISUZU Thermostat 85dg 4JJ1

ISUZU Thermostat 85dg 4JJ1

8980170271
67.92 zł
Tax included

55.22 zł tax excl.

18 18 By purchasing this product, you will earn points exchangeable for a discount voucher worth 1.80 złfor your next order.

Quantity
Available

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 8980170270 8980170272 8980170273 8-98017027-0 8-98017027-2 8-98017027-3

Description

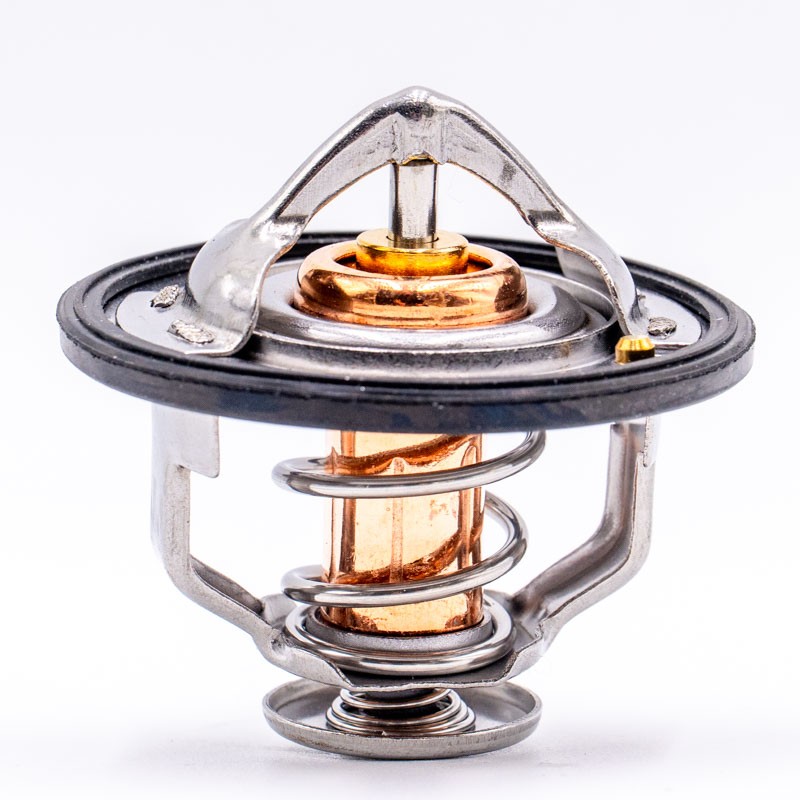

ISUZU Engine Thermostat (85°C) 4JJ1 - 8980170271

Cooling system thermostat with part number 8980170271, dedicated to ISUZU 4JJ1 construction machinery engines. This component is responsible for opening the main cooling circuit at 85°C, allowing the engine to quickly reach operating temperature and maintain it at an optimal level. It is a key component ensuring the efficiency of the power unit and compliance with emission standards in excavators (e.g., Hitachi, JCB) and commercial vehicles (Isuzu D-Max).

Product Features:

  • Precise calibration: The thermostat opens at 85°C, which is the factory value for 4JJ1 engines, preventing both underheating and overheating of the engine.
  • Solid construction: Made of high-quality brass and stainless steel, resistant to corrosion.
  • Dimensions: Flange diameter of 64 mm and bottom valve diameter of 28 mm guarantee a perfect seal in the thermostat housing.

Technical Specification:

ISUZU Part Number 8-98017-027-1
Opening Temperature 85°C
Dimensions (Diameters) Flange: 64 mm / Valve: 28 mm
Engine ISUZU 4JJ1

Sample Application:

Construction Machinery Excavators: Hitachi ZX, JCB JS, Case CX, Sumitomo, Link-Belt (with 4JJ1 engine)
Vehicles Isuzu D-Max, Isuzu Elf (N-Series), Mazda BT-50 (models with Isuzu engine)
Technical Tip: Replacing the thermostat is the perfect time to flush the cooling system and replace the fluid with new coolant. Remember to always install the thermostat with a new gasket. During installation, pay attention to the "bleeder" (small hole with a pin on the thermostat flange) – it should be pointing upwards to allow air bubbles to escape while filling the system.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 8980170271

Product Details
8980170271

Data sheet

Machine type
EXCAVATOR
Engine
ISUZU
Isuzu series
4JJ1
Machine
Isuzu
