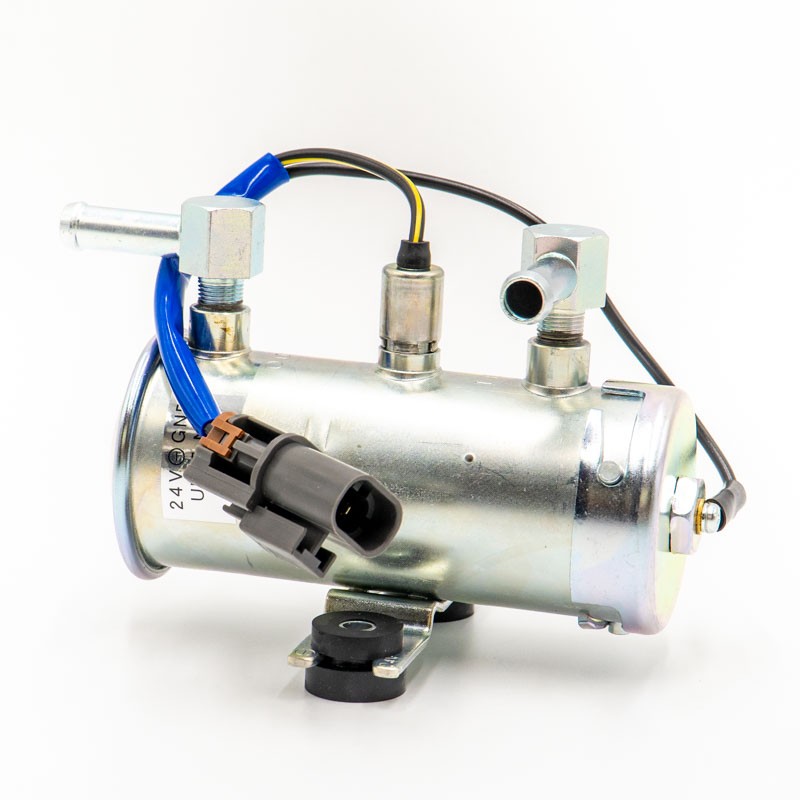

Electric Fuel Feed Pump 24V Isuzu 4HK1 6HK1 Engine (fits JCB) - ISUZU 17/926100
Electric fuel feed pump (lift pump) 24V by ISUZU for JCB excavators fitted with ISUZU 4HK1 and 6HK1 engines. The pump delivers fuel from the tank to the engine injection system, ensuring correct supply pressure. A failed pump shows up as hard starting, the engine cutting out under load, rough running or a complete loss of fuel supply. Original ISUZU number: 8980093971. ISUZU brand - engine first-fit quality.
Technical Specification:
| Part Type |
Electric fuel feed pump (lift pump) |
|---|
| Parts Category |
Fuel System / Feed Pump |
|---|
| Part Number |
17/926100 |
|---|
| ISUZU Number |
8980093971 |
|---|
| Voltage |
24V |
|---|
| Engine |
ISUZU 4HK1 · 6HK1 |
|---|
| Brand |
ISUZU |
|---|
Application (JCB Machines):
Tracked Excavators
JS Series: JS115 · JS130 · JS145 · JS160 · JS180 · JS190 · JS200 · JS210
JS220 · JS235 · JS240 · JS260 · JS290 · JS300 · JS330 · JS360 · JS370
JZ Series: JZ140 · JZ235 · JZ255
Wheeled Excavators
JS Series (Wheeled): JS130W · JS145W · JS160W · JS175W · JS200W
Workshop Technical Tip: Before replacing the pump, make sure the problem is not a blocked fuel filter or water separator - this is the most common issue mistaken for pump failure. Also check the condition of the pump's fuse and relay, and the voltage at the connector (should read 24V). When fitting the new pump, ensure correct polarity and leak-free fuel connections. After replacement, bleed the fuel system per the ISUZU/JCB procedure before attempting to start - air in the system will prevent correct ignition. Check all connections for leaks after starting the engine.
