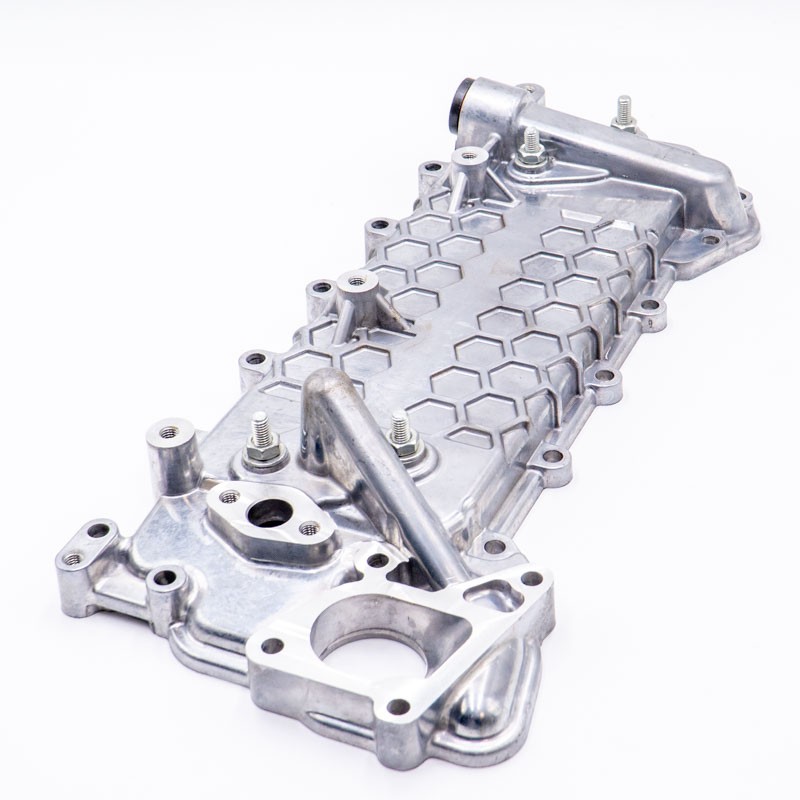

ISUZU 4HK1 Engine Oil Cooler
Engine oil cooler assembly with housing with part number 8980853125. This product is dedicated to ISUZU 4HK1 industrial and automotive engines. The set includes an aluminum housing (filter base) and an integrated plate-type heat exchanger in the 4-plate specification. It is a key element responsible for maintaining optimal oil temperature, preventing its degradation in high-performance turbocharged units.
Product Features:
- Complete module: The offered product is a ready-to-install subassembly, consisting of the body and the cooling core, which eliminates the risk of leaks at the connection of these elements.
- 4-plate specification: The cooler core has 4 flow channels (plates), which is a specific feature for certain power versions of the 4HK1 engine (5 and 6 plate versions also exist).
- Efficiency: The design ensures effective heat exchange between hot oil and the coolant.
Technical Specification:
| ISUZU Part Number |
8980853125, 8-98085-312-5 |
|---|
| Part Type |
Oil cooler with housing (Assembly) |
|---|
| Core Construction |
4 plates (4-plate core) |
|---|
| Engine |
ISUZU 4HK1, 4HK1-TC |
|---|
Application:
| Trucks |
Isuzu Elf, Isuzu Forward, Isuzu N-Series (with 4HK1 engine) |
|---|
| Construction Machinery |
Excavators: Hitachi (ZX200-3, ZX240-3), JCB (JS200, JS220), Case, Sumitomo |
|---|
Technical Tip: Before purchasing, be sure to count the number of plates in the old cooler. 4HK1 engines come in many variants and can be equipped with 4, 5, or 6-plate coolers, which differ in core thickness. If you are replacing the cooler due to the presence of oil in the coolant, remember to thoroughly flush the entire cooling system to remove the oil emulsion, which destroys rubber hoses.
