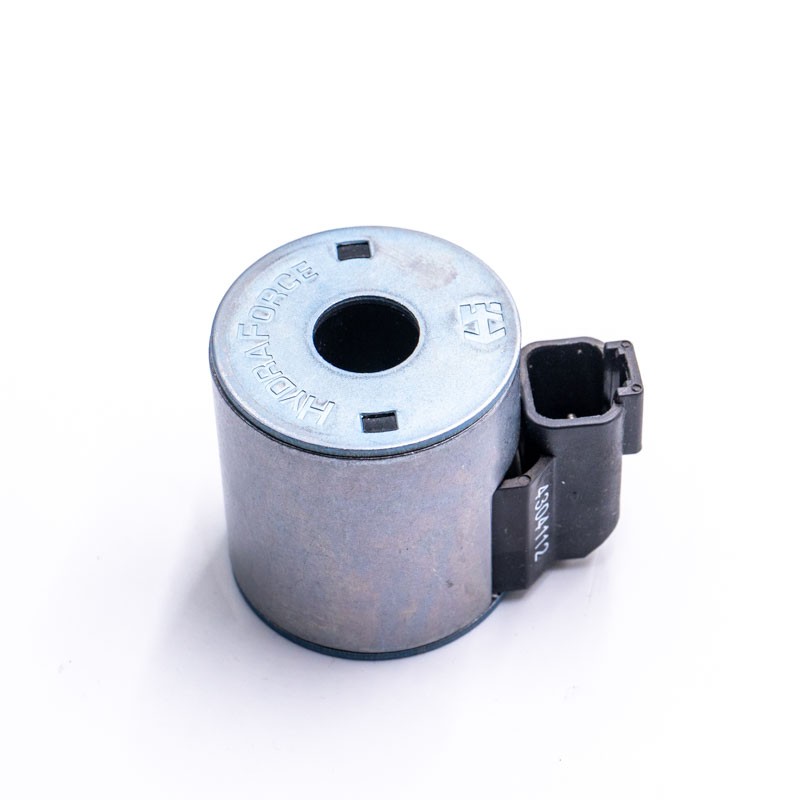

Solenoid Valve Coil 12VDC (Deutsch Connector, 16mm hole) - HYDRAFORCE

Solenoid Valve Coil 12VDC (Deutsch Connector, 16mm hole) - HYDRAFORCE

4304112
155.37 zł
Tax included

126.32 zł tax excl.

42 42 By purchasing this product, you will earn points exchangeable for a discount voucher worth 4.20 złfor your next order.

Quantity
Available

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers :

Description

Solenoid Valve Coil HydraForce 12VDC (Deutsch Connector) - 4304112

Electromagnetic solenoid coil from the renowned brand HydraForce. This highly reliable electrical component is designed to control hydraulic cartridge valves. The coil operates on 12V DC and is equipped with a waterproof Deutsch (DT04-2P) connector featuring a built-in bidirectional Zener diode, which protects the electrical system from voltage spikes. It fits valve stems with a diameter of 16 mm (5/8 inch). This product guarantees precise valve switching and boasts an exceptionally long service life, even in the harsh and damp working environments typical of construction and agricultural machinery.

Technical Specifications:

Operating Voltage 12 VDC (Direct Current)
Connector Type Deutsch Connector (with built-in Zener diode)
Coil Dimensions Inner hole diameter: 16 mm (5/8") / Height: 49.9 mm
Power Consumption 20.5 W
Valve Compatibility Fits HydraForce valve stem series: 10, 12, 16, 38, 58

Application:

Construction & Agriculture Widely used in the valve blocks of backhoe loaders (including JCB), skid steers, aerial work platforms, and forestry equipment.
Hydraulic Systems Directional solenoid valves, attachment control blocks, tail lifts, and 12V hydraulic power units.
Technical Advice (Burnout Warning!): The most common cause of solenoid coil failure is not a short circuit, but overheating. Never connect power to a coil unless it is fully installed onto the metal valve stem! The valve stem acts as a heat sink, drawing heat away from the coil. Without it, the coil will heat up rapidly and burn out within less than a minute. If a newly replaced coil becomes unnaturally hot during operation, check the hydraulic valve cartridge itself. A jammed spool (often caused by debris in the hydraulic oil) will force the coil to work under maximum overload, leading to premature failure.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 4304112

Product Details
4304112
