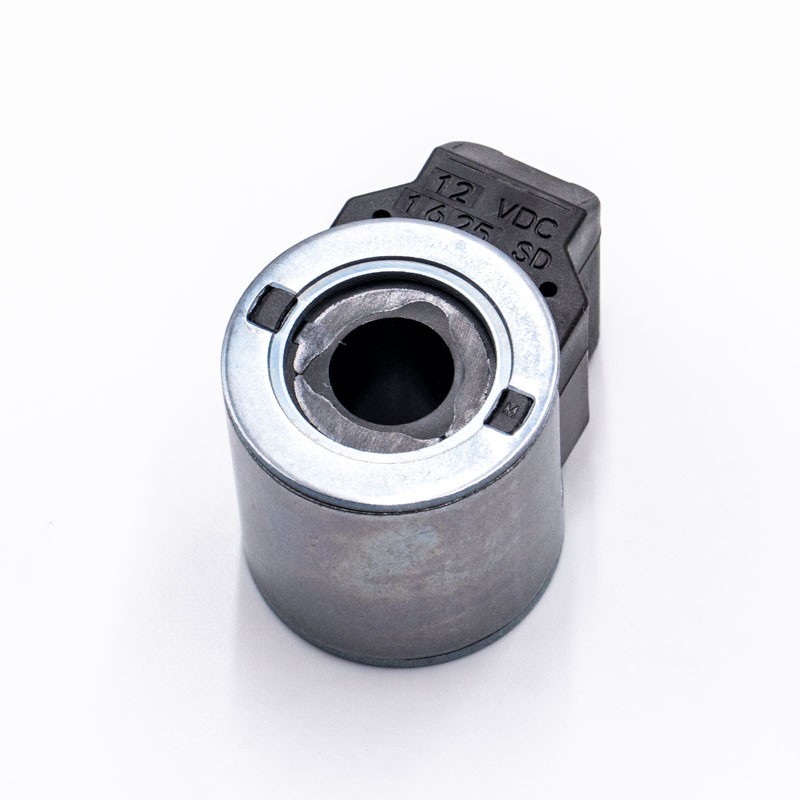

Solenoid Valve Coil 12V DC - HYDRAFORCE 4304012
High-quality 12V DC solenoid valve coil by HYDRAFORCE. This component is commonly used in mobile and industrial hydraulic systems for the precise control of cartridge valves. The use of original HydraForce coils guarantees the reliable operation of directional valves and hydraulic manifolds in construction machinery, agricultural machinery, and advanced industrial equipment.
Durability and connection tightness: The coil is equipped with an integrated Deutsch DT04-2P connector, which, combined with the appropriate plug (DT06-2S), provides excellent protection against moisture, dust, and strong vibrations – common factors in tough field conditions. The optimally selected power (17.2 W) guarantees a fast, strong, and reliable response of the valve stem.
Technical Specification:
- Part type: Solenoid valve coil / electromagnetic coil.
- Operating voltage: 12 VDC (direct current).
- Power: 17.2 W.
- Initial current: 1.4 A.
- Resistance (at 20°C): 8.8 Ohms.
- Inner hole diameter: 1/2 inch (approx. 13 mm).
- Coil height: 36.3 mm.
- Connection type: Built-in Deutsch DT04-2P connector (compatible with DT06-2S plug).
- Manufacturer: HYDRAFORCE.
Valve Compatibility:
| Valve Brand | Supported Series (1/2" stem size) |
|---|
| HYDRAFORCE |
Cartridge valves from series: 08, 80, 88 and 98. |
Workshop Tip: Before installing a new coil, make sure that the stem (tube) of the cartridge valve is perfectly clean, free of rust, and shows no mechanical damage. The coil should slide onto the stem smoothly, without using excessive force or hammering.
Important: If the old coil has burned out (bulging, burnt smell, lack of continuity), before installing a new one, be sure to verify whether the spool inside the valve has not seized due to contaminants in the oil. A blocked stem is the most common cause of hydraulic coil burnout! Also, remember to check the condition of the contacts and wires in the Deutsch plug.
