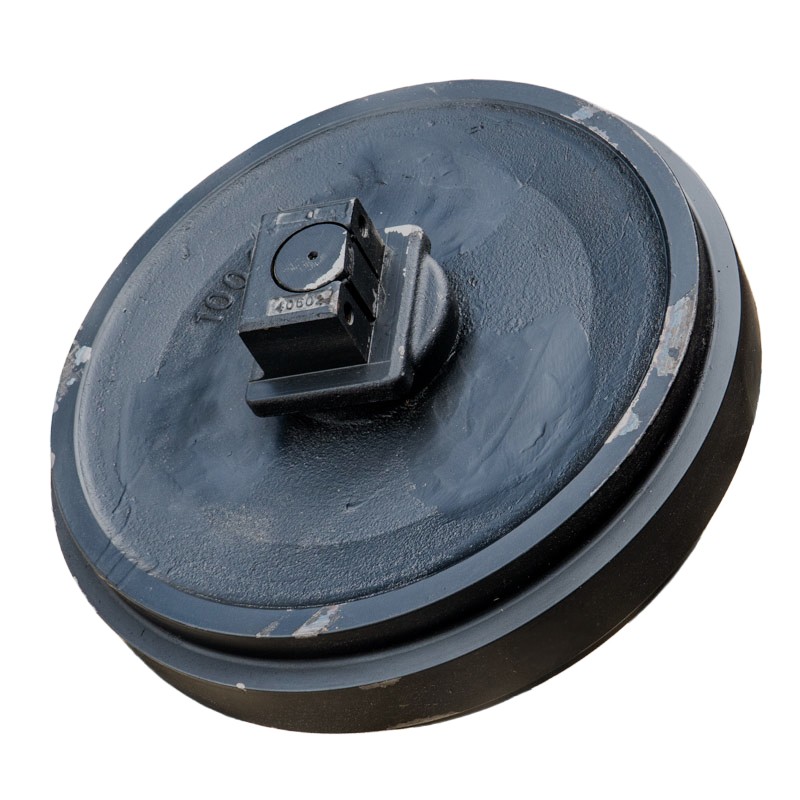

Front Idler Wheel (fits JCB) - DELLAR JNA0223
High-quality front idler wheel (track guide wheel) by DELLAR for JCB JS and JZ Series tracked excavators. The front idler is the leading guide element for the track and works directly with the recoil spring adjuster to maintain correct track tension and proper chain guidance. This is a critical undercarriage component — a damaged or excessively worn idler leads to uneven track wear, vibration and ultimately costly replacement of the entire undercarriage assembly. Manufactured from forged, hardened wear-resistant steel. DELLAR — proven undercarriage component quality at a competitive price.
Technical Specification:
| Part Type |
Front idler wheel (track guide wheel) |
|---|
| Parts Category |
Undercarriage / Running Gear / Track |
|---|
| Part Number |
JNA0223 |
|---|
| Material |
Forged hardened wear-resistant steel |
|---|
| Brand |
DELLAR |
|---|
Application (JCB Machines):
Tracked Excavators
JS Series
JS 110 Series · JS 120 Series · JS 130 Series
JS 140 Series · JS 145 Series
JS130 (1995)
Tracked Excavators
JZ Series
JZ 140 Series: JZ140 [T2] (2004–2009) · JZ140 [T3] (2005–2015)
⚠ Important — verify before ordering: Always verify the part number of the idler wheel fitted to your machine before ordering — depending on year of manufacture and machine variant, a different idler version may be required. If in doubt, please contact us with your machine serial number.
Workshop Technical Tip: A worn front idler shows up as uneven track tread wear, visible lateral track deviation during travel, excessive undercarriage noise and loss of track tension despite a correctly functioning hydraulic adjuster. When replacing the idler, always check the side seal condition — a leaking seal allows grease to escape from the idler shaft journals, leading to rapid internal bearing failure. Set track tension to the service manual specification — both an under-tensioned and over-tensioned track dramatically shortens the service life of the entire undercarriage. For a full undercarriage overhaul, replace the front idler together with the carrier rollers and bottom rollers at the same time.
