Complete Final Drive with Travel Motor (fits JCB)

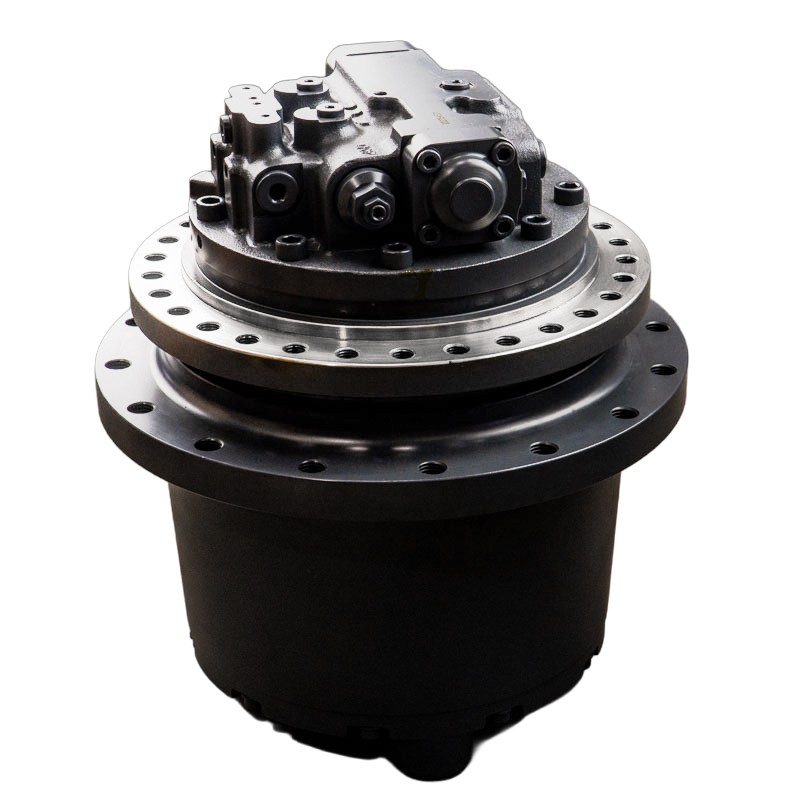

Complete Final Drive with Travel Motor (fits JCB)

JLA0369
14,747.70 zł
Tax included

11,990.00 zł tax excl.

3996 3996 By purchasing this product, you will earn points exchangeable for a discount voucher worth 399.60 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp
Related products
Photo Title Reference Brand Price
JCB Washer M20 JCB Washer M20 1420/0012Z AM 5.08 zł
JCB BOLT JCB BOLT 1316/3815Z OEM 22.14 zł
JCB Washer M20
JCB Washer M20
AM • 1420/0012Z
5.08 zł
JCB BOLT
JCB BOLT
OEM • 1316/3815Z
22.14 zł
Show all related products ↓

Alternative part numbers :

Description

Complete Final Drive with Travel Motor (fits JCB) - JLA0369

High-quality travel drive assembly (planetary final drive integrated with hydraulic motor) for JCB tracked excavators with an operating weight of 13 to 18 tonnes. The unit combines a two-speed piston motor of high efficiency with a multi-stage reduction gearbox. It provides precise drive transfer to the tracks, high tractive effort in difficult terrain and smooth speed changes during transport travel. Check the mounting dimensions in the table below to verify the fit to your machine.

Technical Specification:

Part Type Complete travel drive (final drive + motor)
Parts Category Running Gear / Undercarriage / Final Drive
Part Number JLA0369
Construction Axial piston motor with planetary gearbox
Features Two travel speeds (High/Low) · built-in parking brake
Weight 220 kg

Mounting Dimensions (to verify fit):

Final drive reference drawing - dimension markings D1-D4, L1-L2
Reference drawing - dimension markings
Frame mounting flange outer diameter (D1) 340 mm
Frame bolt hole spacing - bolt circle (D2) 300 mm
Sprocket bolt hole spacing - bolt circle (D3) 400 mm
Sprocket centring diameter 350 mm
Chassis mounting 30 holes · M16 thread
Sprocket mounting 16 holes · M20 thread

Application (JCB Machines):

Tracked Excavators (JS)
JS130 · JS145 · JS160 · JS180
Tracked Excavators (JZ)
JZ140 · JZ140 [T2] (2004-2009) · JZ140 [T3] (2005-2015)
Workshop Technical Tip: The most important factor determining the lifespan of a new final drive is the cleanliness of the hydraulic system and the clear flow of the case drain line. Before installation, make sure no metal debris from the old, failed unit remains in the lines. Remember to check the condition of the drive sprocket - excessively worn teeth will cause vibration and premature bearing wear in the new final drive. The first oil change in the gear section should take place after approximately 50-100 hours of operation (the run-in period). WARNING: this assembly weighs 220 kg - use a suitable hoist or crane for installation, never lift it by hand.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: JLA0369

Product Details
JLA0369

Data sheet

Machine type
EXCAVATOR
Machine
JCB
