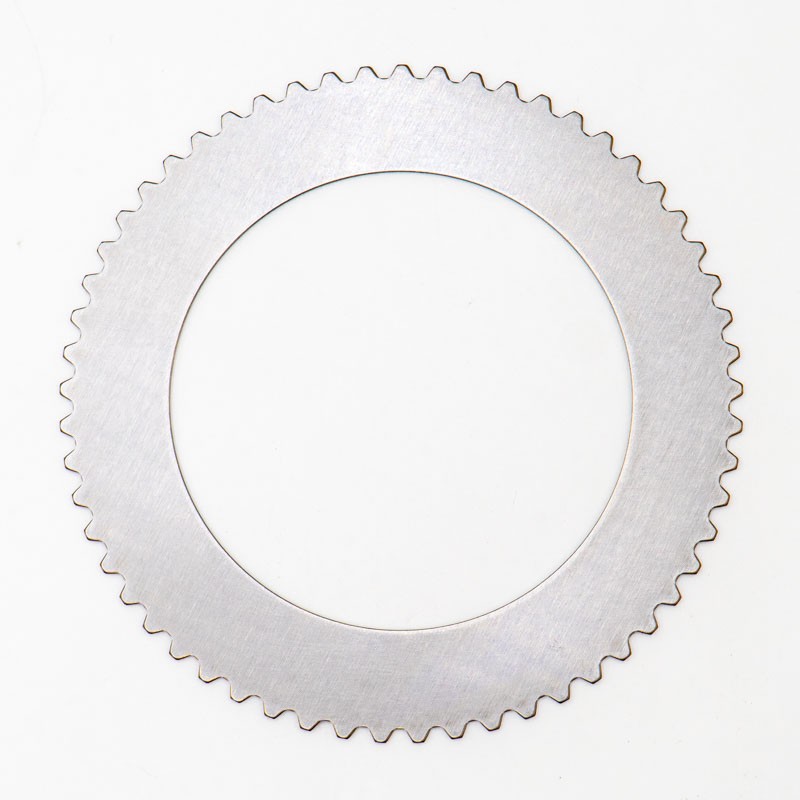

Gearbox Clutch Spacer Plate 1.2mm (fits JCB) - AM PREMIUM 331/16519
High-quality steel clutch spacer plate (clutch steel disc) by AM PREMIUM with a maximum thickness of 1.20 mm. This part is dedicated to wet clutch packs in gearboxes (Powershift / Syncroshuttle) used in JCB construction, agricultural, and industrial machinery. The purpose of this spacer plate is precise adjustment of the axial clearance of the entire clutch basket, which directly translates to smooth, jerk-free gear shifting and stable operation of the transmission system under heavy load.
Premium Quality Class: AM Premium spacer plates are manufactured from specially hardened tool steel featuring high resistance to wear and thermal deformation. The perfectly flat surface and precisely cut 57-tooth internal splines eliminate the risk of local hot spots, extending the lifespan of the entire clutch pack.
Technical Specification:
- Part type: Gearbox clutch spacer plate (Clutch steel disc).
- Quality class: Premium
- Outer diameter: 147.00 mm.
- Inner diameter (measured across the teeth): 99.60 mm.
- Maximum thickness: 1.20 mm.
- Number of teeth: 57.
- Producer/Brand: AM PREMIUM.
Compatibility with JCB Machinery:
| Machine Category | Series and Models |
|---|
| Agricultural Tractors |
Series: Agrimax, Fastrac 3000, Fastrac 4000, Fastrac 7000 |
| Backhoe Loaders |
Series: 3CX, 3CX Entry Level (Global), 4CX, 5CX, 2CX, 2DX, 3DX, 4DX, 210/212, 214/215/217, 3/3C/3CS, 4/4C/4CN |
| Rough Terrain Forklifts |
Series: 926, 930, 940, 950 |
| Telescopic Handlers |
Series: 508, 510, 512, 526, 530, 531, 532, 533, 535, 536, 538, 540, 541, 542, 550, 560 |
| Telescopic Wheel Loaders |
Series: TM 300, TM 400 |
Workshop Tip: During a general overhaul or resealing of a JCB gearbox, absolute verification of the clutch pack height is the key to success. Spacer plates with a thickness of 1.20 mm are used for precise positioning and eliminating the play that occurs as a result of natural wear of the friction discs.
Golden rules for clutch basket assembly:
1. Inspect tooth wear: During every repair, carefully examine the spline (57 teeth) of the plate and the mating grooves in the basket. Any indentations or sharp edges can cause the plates to bind, which will prevent smooth disengagement of the drive.
2. Axial clearance adjustment: Assemble the basket with a new pack of friction discs and use a feeler gauge to measure the clearance under the retaining ring (circlip). If the clearance is too large, the gearbox will generate violent shocks when engaging a gear, which will shorten the life of shafts and gears. If the clearance is too tight, the discs will constantly rub against each other, leading to their immediate burn-out.
3. Proper lubrication: Before finally closing the gearbox housing, make sure that the entire system is filled with clean, dedicated transmission fluid recommended by JCB (such as JCB Transmission Fluid or an equivalent meeting the OEM standards).
