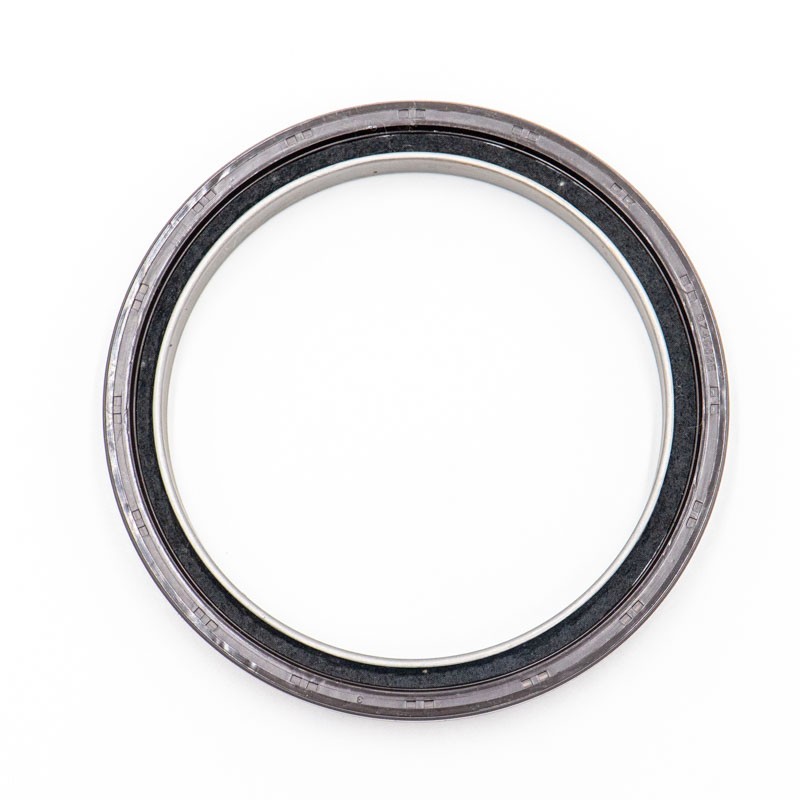

ISUZU Rear Crankshaft Seal 4JG1 4JJ1 4JB1 - 8970715611
High-quality rear crankshaft seal (oil seal), dedicated to the series of ISUZU industrial and automotive engines. The seal is mounted on the flywheel side and is responsible for sealing the engine block where the shaft outputs to the gearbox. The product is made of elastomers with enhanced thermal resistance, which is important due to the high shaft speeds and operating temperatures of the 4J series engines.
Product Features:
- Precise Dimensions: Inner diameter 95 mm and outer diameter 118 mm ensure a perfect fit with the shaft and housing, eliminating oil leaks onto the clutch.
- Dust Lip: The special design of the sealing lip protects the engine interior from contaminants while maintaining the oil film necessary to lubricate the seal-shaft contact area.
- Versatility: Fits a wide range of Isuzu engines used in excavators (JCB, Hitachi, Case), forklifts, and vehicles (Isuzu D-Max).
Technical Specifications:
| Inner Diameter |
95 mm |
|---|
| Outer Diameter |
118 mm |
|---|
| Width / Height |
10 mm |
|---|
| Location |
Rear of engine (flywheel side) |
|---|
Engine Compatibility:
- ISUZU 4J Series: 4JA1, 4JB1, 4JC1, 4JG1, 4JG2, 4JJ1
Machine Compatibility:
| Brand and Category | Models and Variants |
|---|
| Bobcat |
Skid Steer Loaders: 843, 853 |
| Case |
Tracked excavators: CX130, CX135, CX145, CX160, CX180 |
| Doosan |
Tracked excavators: SOLAR 055 |
| Fiat Kobelco |
Tracked excavators: EX75 |
| Gehlmax-IHI |
Tracked excavators: 80NX |
| Hanix |
Tracked excavators: H75B |
| Hidromek |
Tracked excavators: HMK140
Wheeled excavators: HMK140W |
| JCB |
Tracked excavators miniexcavators wheeled excavators JZ JS 8000 |
| New Holland |
Tracked excavators: 9007, E70, E80 |
Technical Tip: Before installing the new seal, carefully check the crankshaft surface. If the old seal has worn a deep groove into the shaft, the new seal may not ensure tightness (in this case, it is worth using a Speedi-Sleeve type repair sleeve or trying to seat the seal at a different depth if the housing allows). Remember to insert the seal evenly to avoid damaging the lip.
