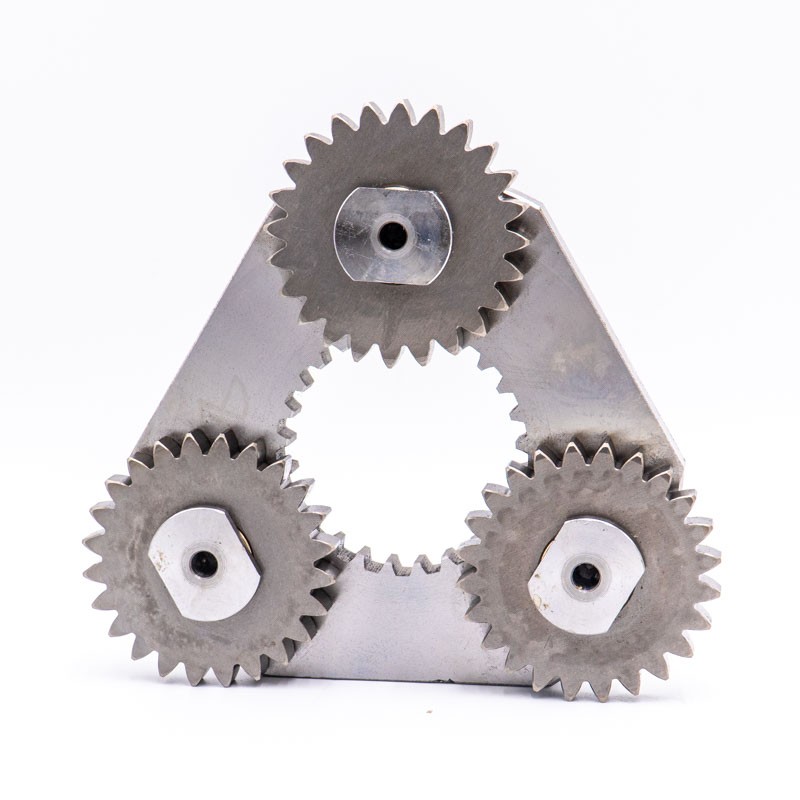

JCB Swing Gearbox Reduction Set 24T / 25 Splines - 459/10165
High-quality reduction gear set (planetary gears) designed for the swing gearbox of JCB machinery. As a key component of the upper structure swing system, this set is responsible for reducing high hydraulic motor RPM and generating the massive torque required for the smooth and precise rotation of the machine's tower. Precision-matched teeth and hardened spline surfaces ensure durability and reliability when operating under heavy lateral loads.
Technical Specification:
- Application: Swing Gearbox.
- Number of Planetary Gear Teeth: 24T.
- Number of Splines (housing/carrier): 25.
- Gearbox Type: Planetary.
- Material: Hardened steel with high fatigue resistance.
Compatibility:
| Machine Type | Models and Series |
|---|
| JS Crawler Excavators |
JS 115, JS 130, JS 140, JS 145 (versions from 1995 onwards) |
| JS Wheeled Excavators |
JS 130, JS 145 |
| Telehandlers |
536-70 [T2] (2007–2021), 536T70 [T3] |
Workshop Technical Advice: Swing system issues—such as jerking, excessive noise, or noticeable play when stopping the upper structure—often stem from wear in the planetary gear set. When replacing the set, it is mandatory to check the swing gearbox oil for metal shavings. Contaminated oil acts like an abrasive paste, destroying new components in a very short time. During installation, ensure the vertical swing shaft bearings are in good condition, as their wear is the most common cause of damage to the planetary gears themselves.
