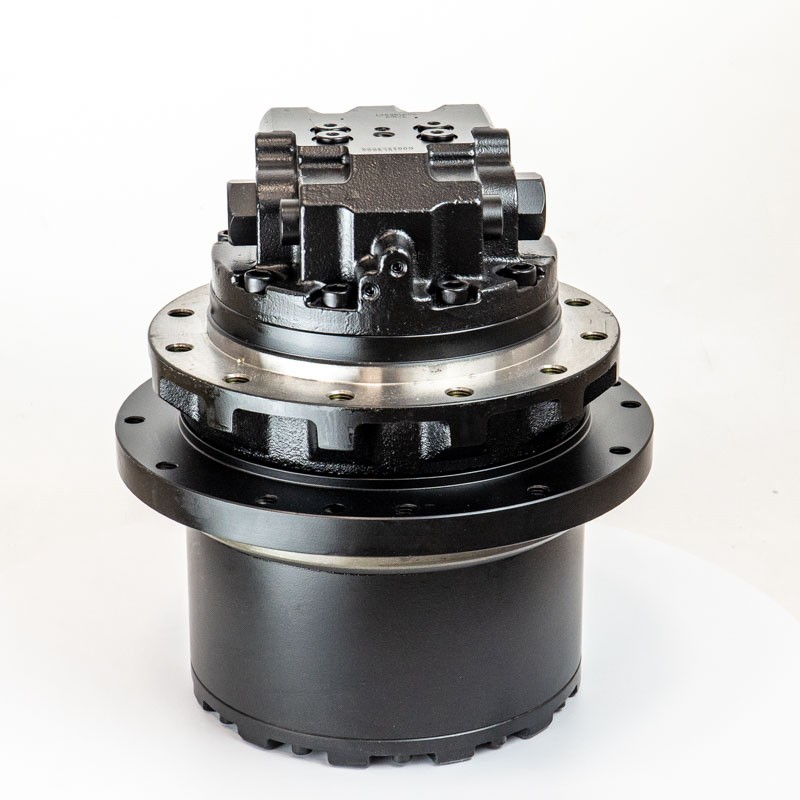

Complete Final Drive with Travel Motor 8080 (fits JCB)

20/925448
3,997.50 zł
Tax included

3,250.00 zł tax excl.

1083 1083 By purchasing this product, you will earn points exchangeable for a discount voucher worth 108.30 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp
Related products
Photo Title Reference Brand Price
JCB Drive Sprocket – DELLAR JCB Drive Sprocket – DELLAR 331/32868 DELLAR 367.77 zł
JCB Drive Sprocket – DELLAR
JCB Drive Sprocket – DELLAR
DELLAR • 331/32868
367.77 zł

Alternative part numbers : 20925448 20-925448 20/951289 20951289 20-951289

Description

Complete Final Drive with Travel Motor 8080 (fits JCB) - 20/925448

High-quality complete travel drive (planetary final drive integrated with hydraulic motor) for JCB 8080 mini excavators with an operating weight of up to 8.5 tonnes. The unit combines a two-speed piston motor with a multi-stage planetary gearbox, offering a balance between tractive effort and travel speed plus smooth operation in difficult terrain. Check the mounting dimensions in the table below to verify the fit to your machine.

Technical Specification:

Part Type Complete travel drive (final drive + motor)
Parts Category Running Gear / Undercarriage / Final Drive
Part Number 20/925448
Motor Type Piston, two-speed (High/Low)
Port Layout 2 supply ports + 2 return/case drain ports
Recommended Machine Weight up to 8.5 tonnes
Weight 94 kg

Mounting Dimensions (to verify fit):

Final drive reference drawing - dimension markings D1-D4, L1-L2
Reference drawing - dimension markings
Mounting flange height (L2) 80 mm
Frame mounting flange outer diameter (D1) 250 mm
Frame bolt hole spacing - bolt circle (D2) 210 mm
Sprocket bolt hole spacing - bolt circle (D3) 300 mm
Largest drum outer diameter (D4) 348.4 mm
Sprocket centring diameter 265 mm
Chassis mounting 12 holes · M16 thread
Sprocket mounting 12 holes · M14 thread

Application (JCB Machines):

Mini Excavators
8080 (2003-2009) · 8080 [T2]
Workshop Technical Tip: When replacing the final drive, make sure the case drain line is completely clear. This model uses two return ports - connecting them incorrectly or blocking them will immediately damage the hydraulic motor seals. Before fitting the drive sprocket, check its condition; if the teeth are "sharp", replacing the final drive alone without a new sprocket will shorten the drive bearing life. WARNING: this assembly weighs 94 kg - use a suitable hoist for installation, never lift it by hand.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 20/925448

Product Details
20/925448

Data sheet

Machine type
MINIEXCAVATOR
Machine
JCB
