Swing Drive Hydraulic Motor (fits JCB) - OEM

336/E4315
25,830.00 zł
Tax included

21,000.00 zł tax excl.

7000 7000 By purchasing this product, you will earn points exchangeable for a discount voucher worth 700.00 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 336E4315 336-E4315

Description

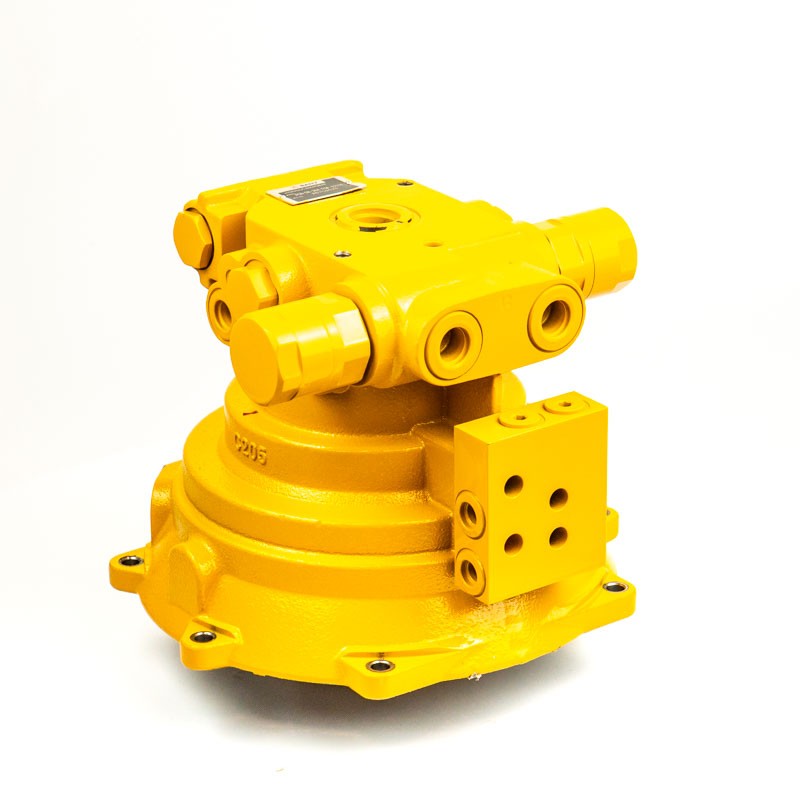

Swing Drive Hydraulic Motor (fits JCB) - OEM 336/E4315

OEM-quality axial piston hydraulic swing motor (upper swing drive assembly) for JCB 85Z, 86C, 90Z and 100C Series mini excavators. This is the upper section of the swing drive assembly — the hydraulic motor that pairs with the planetary swing gearbox 336/E4311. It is responsible for precise superstructure positioning and safe braking of the swing motion even under full bucket load. Equipped with an advanced valve block featuring an integrated relief valve, brake timer valve and by-pass circuit — eliminating jolts during swing start and stop. OEM quality — perfect fit and performance identical to the original factory component.

Technical Specification:

Part Type Axial piston hydraulic swing motor (upper swing drive section)
Parts Category Hydraulic System / Swing Drive Motor
Part Number 336/E4315
Alternative Designations 336E4315  ·  336-E4315
Mounting 8 mounting holes
Control Valves Relief valve · Brake timer valve · By-pass circuit
Compatible Gearbox 336/E4311
Features Soft start · Hydraulic swing braking
Quality OEM (first fit quality)

Application (JCB Machines):

JCB 85Z Series
85Z-1 [T2]  ·  85Z-1 [T4F]
85Z-2 [STV JCB]  ·  85Z-2 [T3 JCB]  ·  85Z-2 [T4F GEO]  ·  85Z-2 [T4F JCB]
JCB 86C Series
86C-1 [T2]  ·  86C-1 [T4F]
86C-2 (TAB) [STV JCB]  ·  86C-2 [STV JCB]  ·  86C-2 [T3 JCB]
86C-2 [T4F GEO]  ·  86C-2 [T4F JCB]
JCB 90Z Series
90Z-1 [T4F]  ·  90Z-2 [STV JCB]  ·  90Z-2 [T4F JCB]
JCB 100C Series
100C-1 [T4F]  ·  100C-2 [STV JCB]  ·  100C-2 [T4F JCB]
Workshop Technical Tip: The integrated brake timer and by-pass valves eliminate jolts during swing stop — if the machine was jerking when the swing braked before failure, the cause may have been a worn valve block within the motor itself. When replacing the motor, always verify that the drain (leak-off) port is clear and unobstructed — a blocked drain port causes rapid internal pressure build-up, destroying the shaft seal or cracking the motor housing. Pre-fill the motor housing with clean hydraulic oil through the ports before the first start — running dry even for a few seconds permanently damages the pistons and valve plate. Also inspect the condition of the planetary swing gearbox 336/E4311 — a worn gearbox will rapidly destroy a new motor.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 336/E4315

Product Details
336/E4315

Data sheet

Machine type
MINIEXCAVATOR
Machine
JCB
