Swing reducer (fitting JCB JS / JZ)

20/925531
8,597.70 zł
Tax included

6,990.00 zł tax excl.

2330 2330 By purchasing this product, you will earn points exchangeable for a discount voucher worth 233.00 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 20925531 20-925531

Description

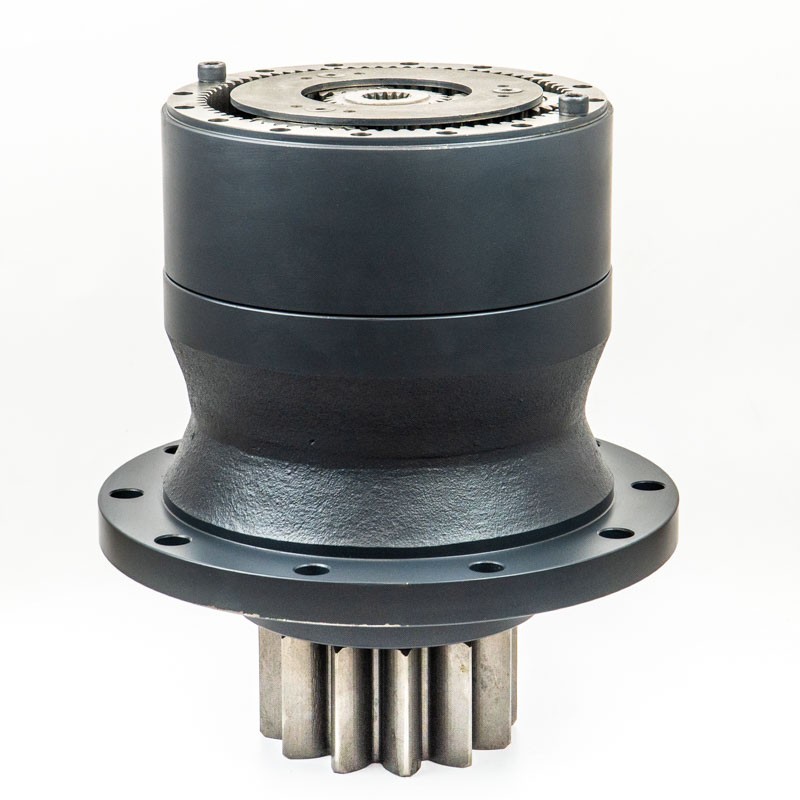

Swing reducer (planetary gearbox) fitting JCB - 20/925531

High-quality mechanical swing reduction gearbox designed for JCB tracked and wheeled excavators. It is a multi-stage planetary gearbox responsible for transferring the drive from the hydraulic motor to the swing ring gear. Thanks to precision-engineered gears with high surface hardness, this component ensures smooth movement of the upper carriage and provides the massive holding force necessary when working on slopes and during precise grading operations.

Technical Specification:

  • Number of mounting holes: 10 (to the machine frame/housing).
  • Pinion shaft (output shaft): 12 teeth.
  • Gearbox type: Planetary, multi-stage.
  • Application: Speed reduction and torque increase for the swing system.
  • Catalog number of compatible hydraulic motor: 20/925570
  • Catalog number of compatible swing ring gear: 332/K8067

Compatibility:

Machine TypeModels and Variants
Tracked Excavators JS 115, JS 130, JS 131, JS 145, JS 220, JZ 140 (T2/T3)
Wheeled Excavators JS 145, JS 145W (STV, T3, T4F, T4i)
Workshop Technical Tip: Before installing a new reduction gearbox, it is mandatory to check the condition of the swing ring gear teeth. If the ring gear has chipping or excessive wear, the new pinion shaft will suffer premature failure. Remember to fill the gearbox with fresh gear oil after installation (as per JCB specifications, usually 80W90) and verify the breather/vent is clear to avoid blowing out the seals due to rising internal pressure during operation.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 20/925531

Product Details
20/925531

Data sheet

Machine type
EXCAVATOR
Machine
JCB
