JCB Swing reducer o-ring

JCB Swing reducer o-ring

05/903861
21.24 zł
Tax included

17.27 zł tax excl.

5 5 By purchasing this product, you will earn points exchangeable for a discount voucher worth 0.50 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 05903861 05-903861

Description

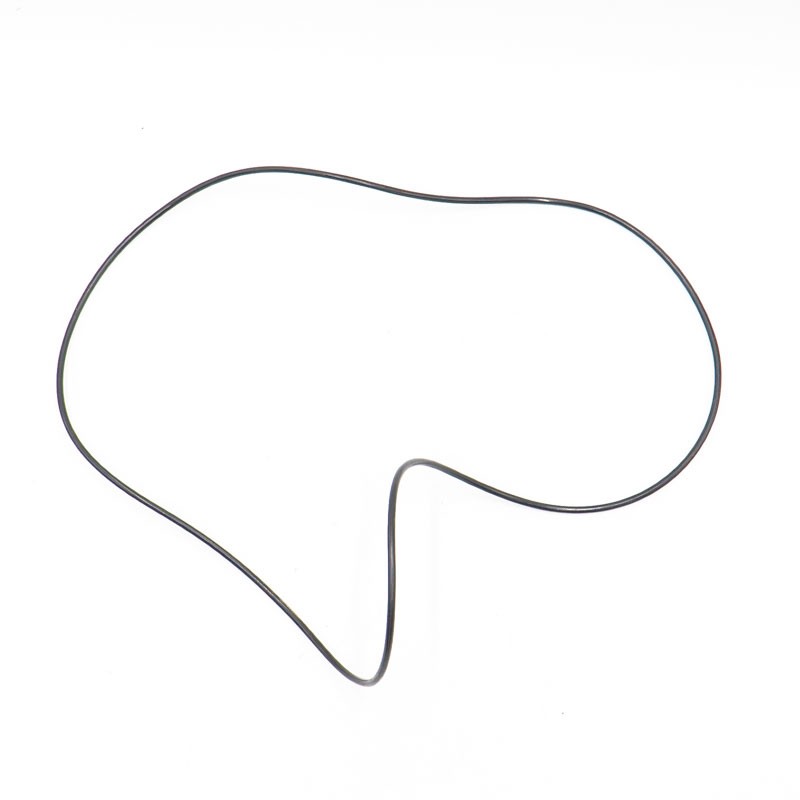

JCB Swing Gear Reduction O-ring (291.69 x 3.53 mm) - 05/903861

High-quality O-ring seal designed for the swing reduction mechanism in JCB machinery. This ring is mounted on the annulus gear housing, where it plays a key role in maintaining the tightness of the swing gearbox oil chamber. It protects the system from gear oil leaks and secures the interior of the reduction gear against the ingress of water and dust. Made from a rubber compound resistant to aging and the aggressive effects of EP (Extreme Pressure) additives contained in gear oils.

Technical Specification:

  • Inner Diameter approx. (D1): approx. 291.69 mm.
  • Cross-section approx. (D2): 3.53 mm.
  • Application: Swing reduction annulus gear housing.

Compatibility:

Machine TypeModels and Variants
JS Wheeled Excavators JS 20, JS 160, JS 175, JS 200
Tracked Excavators JCB 205, 215, 225, 245, JS 160, 180, 190, 200, 205, 210, 220, JZ 235, JZ 255
Workshop Technical Advice: Due to its large diameter and relatively small cross-section, this O-ring is prone to twisting during the seating of the annulus gear. Before installation, thoroughly clean the sealing groove and apply a thin layer of silicone grease or technical petroleum jelly to both the groove and the O-ring itself. This will prevent the seal from "pinching" when tightening the housing bolts. If you notice during disassembly that the old O-ring is hard and brittle, it indicates overheating of the swing drive—in such a case, it is worth checking the oil level and condition within the reduction gear.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 05/903861

Product Details
05/903861

Data sheet

Machine type
EXCAVATOR
Machine
JCB
