JCB Travel reducer seal 275x303x38mm

JCB Travel reducer seal 275x303x38mm

05/903811
169.74 zł
Tax included

138.00 zł tax excl.

46 46 By purchasing this product, you will earn points exchangeable for a discount voucher worth 4.60 złfor your next order.

Quantity
Available

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp
Related products
Photo Title Reference Brand Price
JCB Hydromotor cover seal - JS JCB Hydromotor cover seal - JS 05/903819 AM 19.40 zł
JCB Drive shaft (slew/track gearbox) - JS OEM JCB Drive shaft (slew/track gearbox) - JS OEM 05/903834 OEM 1,643.74 zł
JCB Hydromotor cover seal - JS
JCB Hydromotor cover seal - JS
AM • 05/903819
19.40 zł
JCB Drive shaft (slew/track gearbox) - JS OEM
JCB Drive shaft (slew/track gearbox) - JS OEM
OEM • 05/903834
1,643.74 zł
Show all related products ↓

Alternative part numbers : 20/951600 550/43219 05903811 05-903811

Description

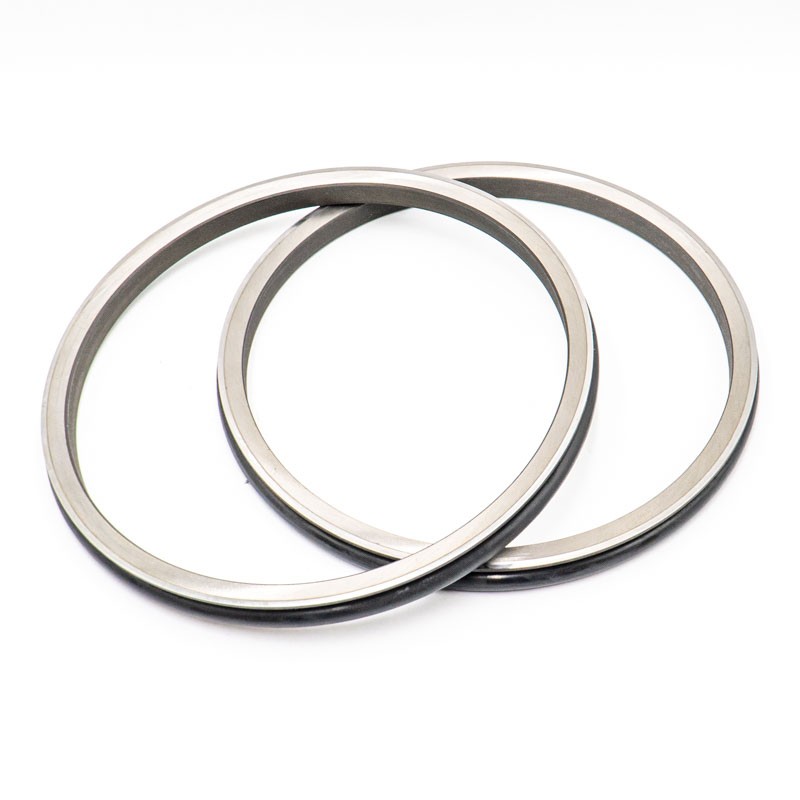

JCB Final Drive Seal Assembly 275x303x38mm - 05/903811

High-quality Duo-Cone mechanical face seal, designed for JCB tracked excavator final drives. This is a key component protecting the planetary gearbox from oil leaks and the ingress of contaminants such as mud, water, or sand. Thanks to the use of precision-ground metal rings and flexible O-rings, the seal ensures long-term drivetrain integrity even in the most demanding terrain conditions.

Technical Specification:

  • Inner Diameter: 275 mm.
  • Outer Diameter: 303 mm.
  • Width (set thickness): 38 mm.
  • Type: Mechanical Face Seal (Duo-Cone).
  • Application: Main seal for the travel reduction unit housing.

Compatibility:

Machine SeriesModels
JCB Excavators JCB225, JCB245
JS Series JS 115, JS 130, JS 140, JS 145, JS 160, JS 180, JS 190, JS 200, JS 205, JS 210, JS 220, JS 235, JS 240, JS 260, JS130 (from 1995 onwards)
JZ Series JZ 140, JZ 235, JZ 255
Workshop Technical Advice: Duo-Cone seals are extremely precise – during installation, under no circumstances touch the mating face surfaces of the metal rings with dirty hands. The smallest fingerprint or grain of sand on the mirror-finished surface can cause a leak. Before seating the O-rings, make sure that the housing sockets are perfectly clean and degreased. Remember: if you see an oil leak on the inner side of the track, the Duo-Cone seal has reached the end of its life. Replace it immediately before water and mud destroy the final drive's main bearings.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 05/903811

Product Details
05/903811

Data sheet

Machine type
EXCAVATOR
