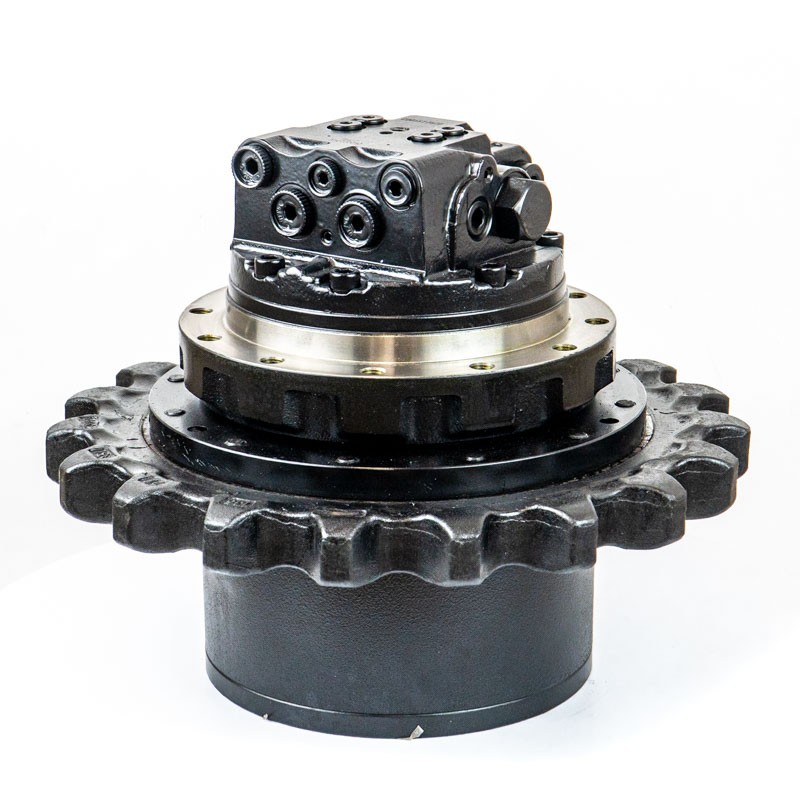

JCB Complete Travel Drive (Final Drive + Motor + Drive Sprocket) - 20/925564
High-quality integrated drive assembly, including a planetary final drive, a two-speed hydraulic motor, and a matching drive sprocket. This component is dedicated to JCB mini-excavators with an operating weight ranging from 5 to 6.5 tons. The piston-type motor provides high tractive effort and maneuvering precision, while the integrated planetary gearbox ensures optimal power transmission to the machine's tracks.
Technical Specification:
- Motor Type: Axial piston hydraulic motor.
- Functions: Two travel speeds (High/Low), hydraulically controlled.
- Drainage System: Features a dedicated case drain port.
- Construction: Multi-stage planetary final drive with an attached drive sprocket.
- Application: Tracked undercarriage drive.
Compatibility:
| Machine Model | Variant and Production Period |
|---|
| JCB 8056 |
Models from 2006–2011 |
| JCB 8060 |
Models from 2001–2008 |
| JCB 8061 CTS |
Variant [T2 SHA] |
| JCB 8065 RTS |
Variant [T3] |
Workshop Technical Advice: When installing the complete travel drive, the correct connection of the case drain line is of critical importance. Blocking or incorrectly connecting this line will cause a rapid pressure increase inside the motor housing, leading to immediate seal failure. Before the initial start-up, ensure that the motor housing has been primed with clean hydraulic oil, and that the gearbox section (final drive) contains the correct amount of gear oil (e.g., 80W90). It is recommended to change the gear oil in the final drive after the first 50 operating hours to remove any metal filings from the break-in period.
