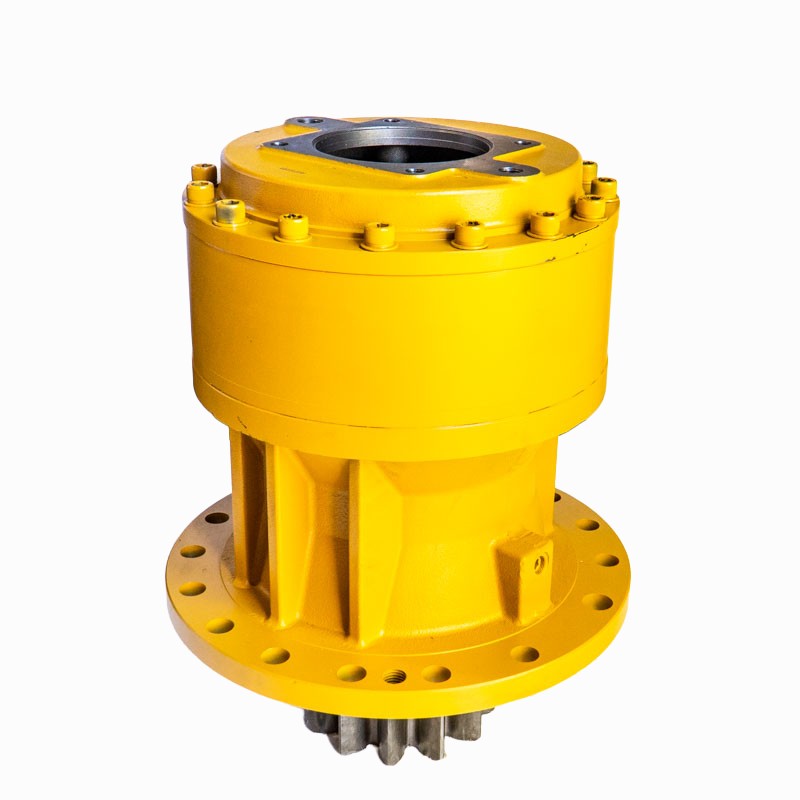

Swing Reducer (Planetary Gearbox) (fits CAT) - 1912693
Heavy-duty swing reducer (planetary gearbox) without hydraulic motor, fits in Caterpillar (CAT) machines operating in extreme conditions. This unit is responsible for transmitting massive torque to the swing ring, allowing for precise and smooth maneuvering of the upper structure. With its reinforced construction and a weight of approximately 270 kg, this reducer is ideal for forestry machines, material handlers, and crawler units with high operating weights.
Technical Specification:
- Number of drive pinion teeth: 12 teeth.
- Mounting: 17 main holes + 2 auxiliary holes (19 total).
- Weight: approx. 270 kg.
- Design: High-strength multi-stage planetary gearbox.
- Condition: Complete reducer, ready for hydraulic motor installation.
Machine Compatibility:
| Machine Type | Supported CAT Models |
|---|
| Crawler Excavators |
322C, 324D, 324E, 325C, 325D, 326D2, 326F, 329D, 329D2, 329E, 329F, 330D2, 330F (L, LN, LL) |
| Forestry & Feller Bunchers |
TK711, TK721, TK722, TK732, 1190, 1190T, 1290T, 322C FM, 325D FM |
| Wheeled Excavators & MH |
M325C MH, M325D MH, M325D L MH (Material Handlers) |
| Generator Sets / Other |
3512B (Power Units), 330F OEM |
Workshop Technical Tip: When installing the reducer without the hydraulic motor, special care must be taken to ensure the cleanliness of the contact surfaces of both components and the condition of the seals (O-rings). Before the first startup, the gearbox must be filled with fresh high-viscosity gear oil (recommended SAE 80W90 or 90) according to the level indicated on the dipstick or check plug. It is imperative to check the condition of the swing ring teeth – debris or damage to the ring can quickly lead to the shearing or breakage of the new drive pinion teeth.
