Final drive with hydromotor (fits CAT)

194-6469
5,043.00 zł
Tax included

4,100.00 zł tax excl.

1366 1366 By purchasing this product, you will earn points exchangeable for a discount voucher worth 136.60 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 1946469

Description

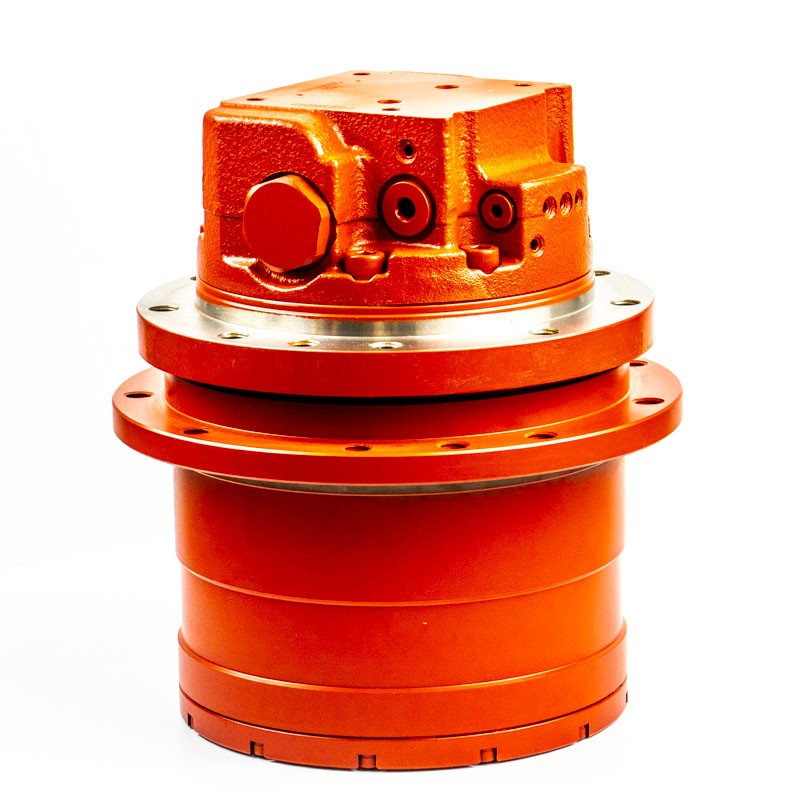

Complete Final Drive with Travel Motor (fits CAT) - 1946469

High-quality complete drive assembly (final drive with hydraulic motor), fits in Caterpillar (CAT) mini excavators. The component integrates a high-efficiency piston hydraulic motor with a planetary reduction gearbox. It provides precise travel control and high tractive effort necessary for working in challenging terrain. The construction is designed for maximum durability and resistance to mechanical overloads.

Technical Specification:

  • Frame mounting diameter: 165 mm.
  • Number of frame mounting holes: 9.
  • Drive sprocket seating diameter: 190 mm.
  • Number of sprocket mounting holes: 9.
  • Drive type: Hydraulic motor integrated with planetary reducer.

Machine Compatibility:

Machine Type and NameSupported Models
302.5C Mini Excavators 302.5C (compact series)
303CR Mini Excavators 303CR (compact radius series)
Workshop Technical Tip: When installing a new final drive, it is crucial to verify the clearance of the case drain line. Any blockage in this line will cause immediate damage to the hydraulic motor seals. Before starting the machine, also ensure that the mechanical part of the gearbox is filled with the correct amount of gear oil (recommended: SAE 80W90). We suggest performing the first oil change in the new component after the first 50-100 operating hours to remove any contaminants from the break-in period.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 194-6469

Product Details
194-6469

Data sheet

Machine type
MINIEXCAVATOR
Machine
CATERPILLAR
