  • image-360

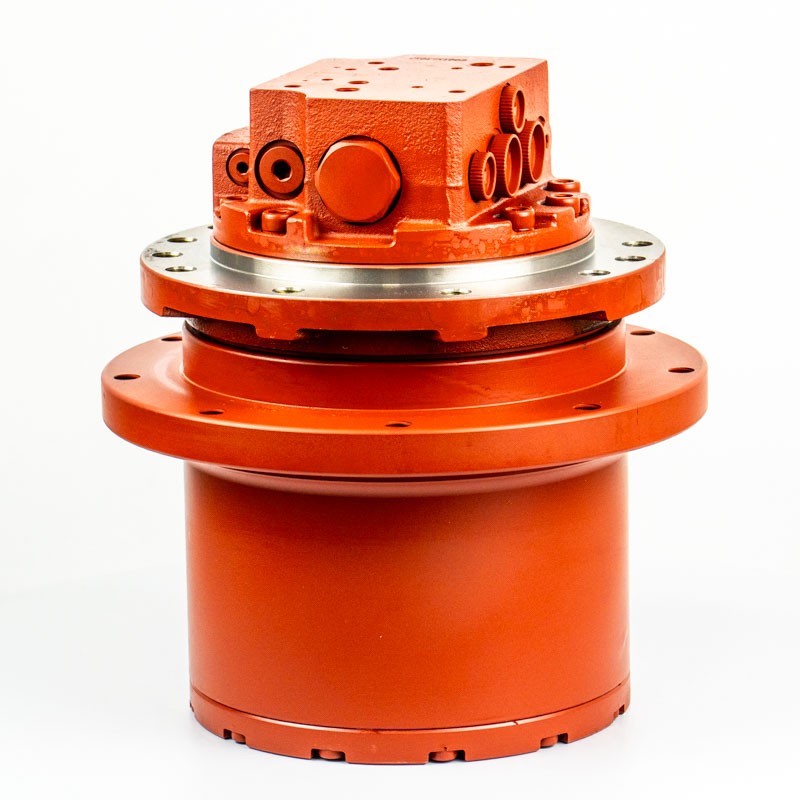

Final drive with hydromotor assembly (fits CAT)

199-5148
6,765.00 zł
Tax included

5,500.00 zł tax excl.

1833 1833 By purchasing this product, you will earn points exchangeable for a discount voucher worth 183.30 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 1995148

Description

Final Drive with Travel Motor assembly (fits CAT) - 1995148

High-quality drive assembly (integrated final drive and hydraulic motor), dedicated to mid-sized Caterpillar (CAT) mini excavators. The unit consists of a two-speed axial piston hydraulic motor and a multi-stage planetary gearbox. This design provides the powerful torque necessary for efficient machine movement in difficult ground conditions, while ensuring smooth operation and precise control.

Technical Specification:

  • Chassis frame mounting: 12 mounting holes.
  • Drive sprocket mounting: 9 mounting holes.
  • Sprocket seating diameter: 230 mm.
  • Motor type: Axial piston hydraulic motor, two-speed (High/Low).
  • Construction: Integrated high-strength planetary reducer.

Machine Compatibility:

Machine Type and NameSupported Models
304 series mini excavators 304, 304.5
305 series mini excavators 305, 305.5
306 series mini excavators 306 (selected undercarriage versions)
Workshop Technical Advice: The most critical step during the installation of a new final drive is verifying the clearance of the case drain line. A blocked return line will lead to an immediate pressure spike inside the motor and damage to the seals. Before startup, ensure that the planetary gearbox is filled with fresh SAE 80W90 oil up to the level of the check plug. We suggest performing the first oil change after approximately 100 operating hours to remove any micro-contaminants generated during the break-in period of the new gears.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 199-5148

Product Details
199-5148

Data sheet

Machine type
MINIEXCAVATOR
Machine
CATERPILLAR
