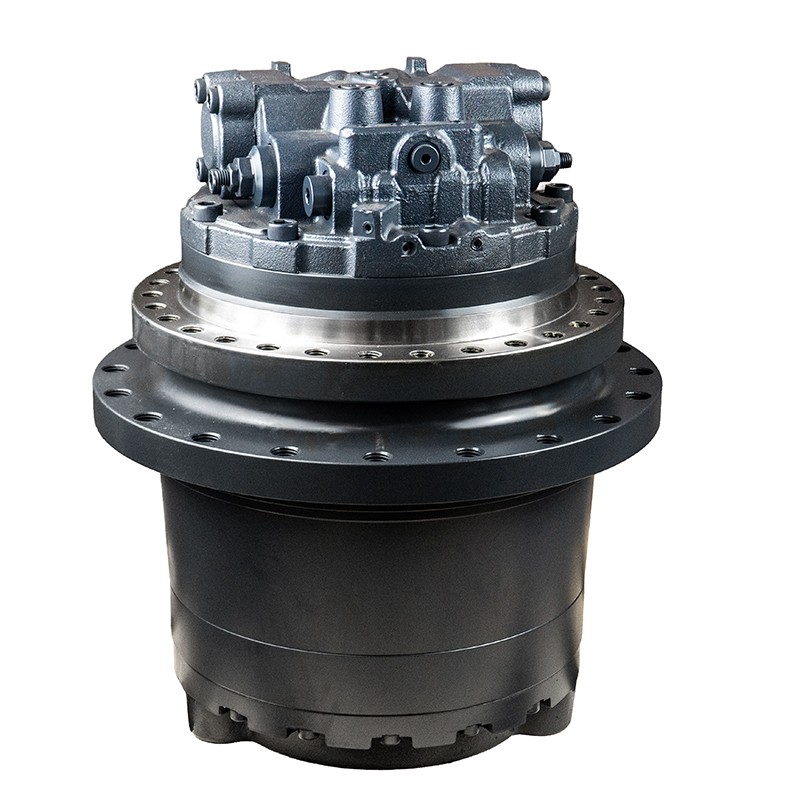

JCB Complete Final Drive with Travel Motor - 20/925318
High-quality complete travel drive (final drive including hydraulic motor) designed for JCB crawler excavators. This is an integrated drive assembly consisting of a two-speed piston motor and a multi-stage planetary gearbox. This design provides the powerful torque necessary for moving in difficult terrain and allows for precise travel speed control. The component features a 30-hole mounting standard, typical for machines weighing between 13 and 26 tons.
Technical Specification:
- Motor Design: Piston-type with case drain system.
- Travel Speeds: 2-speed (automatic shifting under load).
- Port Arrangement: 2 supply ports (pressure) + 2 return/drain ports.
- Frame Mounting: 300 mm diameter | 30 mounting holes.
- Sprocket Mounting: 402 mm diameter | 30 mounting holes.
Compatibility:
| Machine Series | Models and Variants |
|---|
| JCB Excavators (New Gen) |
JCB 205, JCB 215, JCB 225, JCB 245 |
| JS Crawler Excavators |
JS 115, JS 130, JS 145, JS 160, JS 180, JS 190, JS 200, JS 205, JS 210, JS 220, JS 235, JS 240, JS 260 |
Workshop Technical Tip: The most critical factor during the installation of a new final drive is the permeability of the case drain line. These motors feature two return ports – ensure they are connected according to the machine's specific hydraulic schematic. Any blockage in the return line will cause a rapid pressure buildup inside the motor housing, leading to the immediate blowout of the shaft seal or permanent damage to the pistons. Before the first operation, you must prime the motor housing with clean hydraulic oil and check the gear oil level in the final drive itself.
