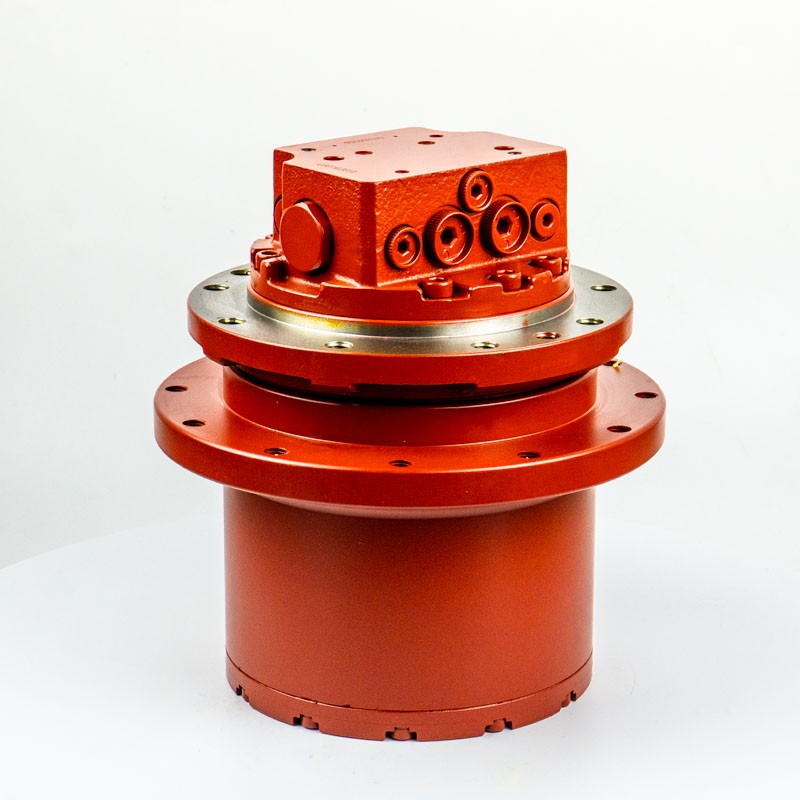

Complete Final Drive with Travel Motor Mini Excavators ZTS/RTS (fits JCB)

20/925682
5,350.50 zł
Tax included

4,350.00 zł tax excl.

1450 1450 By purchasing this product, you will earn points exchangeable for a discount voucher worth 145.00 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp
Related products
Photo Title Reference Brand Price
JCB Hydraulic adaptor JCB Hydraulic adaptor 1620/2055 AM 16.32 zł
Adapter 3/8 in BSP x 9/16 in SAE - AZERI PARTS Adapter 3/8 in BSP x 9/16 in SAE - AZERI PARTS 1620/2052 Azeri Parts 15.71 zł
JCB Hydraulic adaptor
JCB Hydraulic adaptor
AM • 1620/2055
16.32 zł
Adapter 3/8 in BSP x 9/16 in SAE - AZERI PARTS
Adapter 3/8 in BSP x 9/16 in SAE - AZERI PARTS
Azeri Parts • 1620/2052
15.71 zł

Alternative part numbers : 20925682 20-925682

Description

Complete Final Drive with Travel Motor Mini Excavators ZTS/RTS (fits JCB) - 20/925682

High-quality complete travel drive assembly (final drive) - reduction gear integrated with a hydraulic motor - for JCB ZTS (Zero Tail Swing) and RTS (Reduced Tail Swing) series mini excavators. The unit is a two-speed travel drive mounted directly in the machine's tracked undercarriage, ready to fit together with the drive sprocket. It is a complete unit replacing a worn or damaged original.

Technical Specification:

Type Complete travel final drive (gearbox + motor)
Speeds Two-speed (2-speed)
Unit weight 62 kg
Frame mounting 9 holes, M14 thread
Sprocket mounting 12 holes, M14 thread
Frame flange outer diameter (D1) 220 mm
Frame bolt hole circle (D2) 180 mm
Sprocket bolt hole circle (D3) 230 mm
Output flange outer diameter (for sprocket) 262 mm
Largest housing outer diameter (D4) 301 mm
Mounting flange height (L2) 75 mm
Dimension drawing JCB final drive 20/925682
Reference drawing - dimension markings

Application:

JCB 8040 ZTS
8040 ZTS [T2] · 8040 ZTS [T3]
JCB 8050 RTS / ZTS
8050 RTS [T3] · 8050 ZTS [T3]
JCB 8054 ZTS
8054 ZTS [T2] · 8054 ZTS [T3]
Workshop Technical Tip: The most common cause of new final drive failure is a contaminated hydraulic system. Before fitting, always flush the lines and replace the hydraulic filter and oil. Correct connection of the drain (case drain) line is also vital - blocking it will instantly blow out the shaft seal in the hydraulic motor. Remember to check the gearbox oil level every 250 operating hours. When fitting the drive sprocket, tighten the M14 bolts to the correct torque and in a cross pattern - uneven tightening risks sprocket run-out and accelerated wear.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 20/925682
