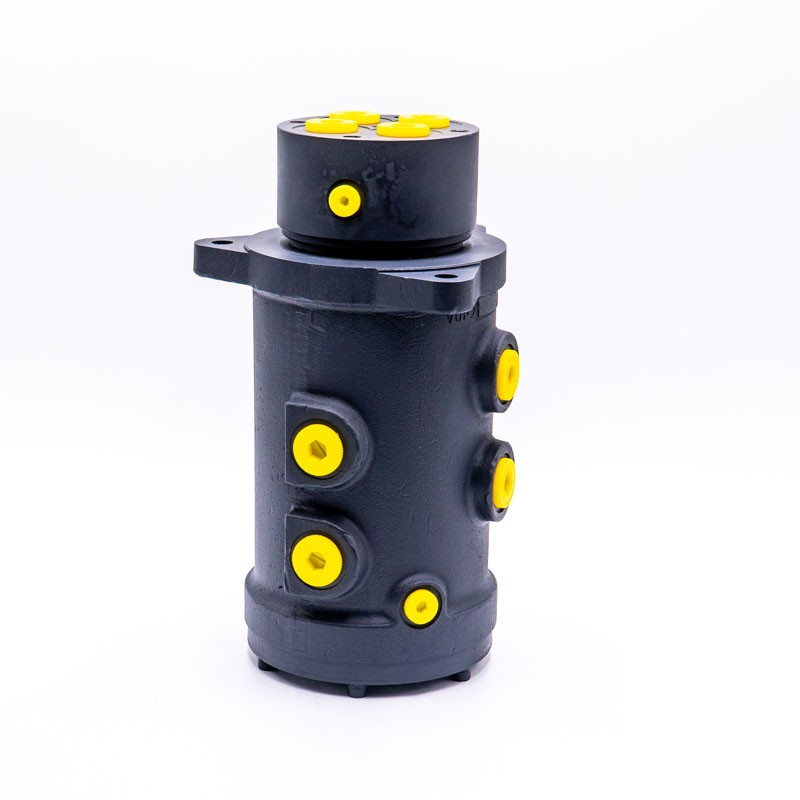

JCB Rotory hydraulic coupling

45/920115
7,134.00 zł
Tax included

5,800.00 zł tax excl.

1933 1933 By purchasing this product, you will earn points exchangeable for a discount voucher worth 193.30 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 45920115 45-920115

Description

JCB Hydraulic Rotary Coupling - 45/920115

High-quality hydraulic coupling / joint (often referred to as a rotary union or center joint), a component allowing unrestricted 360-degree rotation of the excavator's upper structure relative to the undercarriage. This joint precisely transfers high-pressure hydraulic oil from the main pump (located in the upper structure) to the travel motors and optional undercarriage attachments (e.g., dozer blade), preventing hydraulic hoses from twisting or tangling.

Technical Specification:

  • Type: Multi-channel hydraulic rotary manifold.
  • Construction: Precision-ground core and housing with high-pressure seals.
  • Application: Hydraulic connection between the undercarriage and the upper structure.

Compatibility:

Machine TypeSupported Models and Series
JS Crawler Excavators JS115, JS130, JS131, JS145, JS160, JS180, JS190, JS200, JS210, JS220, JS235, JS240, JS260
JZ / X Crawler Excavators JZ140, JZ141, JZ235, JZ255 | 131X, 140X, 150X
Wheeled Excavators JS145W [T4F], JS145WHR4F (2018–2021), JS145WTT4F (2018–2021)
Workshop Technical Advice: A swivel joint failure usually manifests as external leaks under the machine or internal cross-channel bypass (resulting in, for example, a loss of travel power on one track or the dozer blade drifting down). During installation, ensure absolute cleanliness of the ports and use only new O-rings and Quad-rings. After installation, perform several full rotations of the upper structure without load to bleed the system and check the tightness of all bolt connections.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 45/920115

Product Details
45/920115

Data sheet

Machine type
EXCAVATOR
Machine
JCB
