Swing Motor without Gearbox (fits JCB) - OEM

20/951632
7,318.50 zł
Tax included

5,950.00 zł tax excl.

1983 1983 By purchasing this product, you will earn points exchangeable for a discount voucher worth 198.30 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : 20925447 20-925447 20/925447 20951632 20-951632

Description

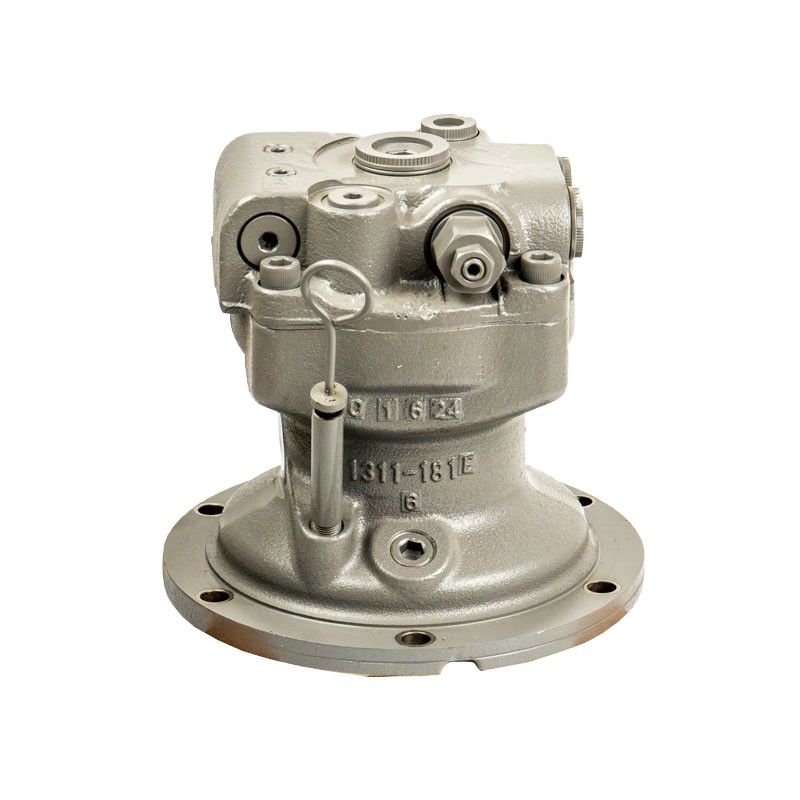

Swing Motor without Gearbox (fits JCB) - OEM 20/951632

OEM-quality hydraulic swing motor (axial piston) for JCB 808X Series mini and midi excavators. This component is the upper section of the swing drive (without the planetary gearbox) and is responsible for precise superstructure rotation. The motor features an integrated valve block controlling soft start and braking, plus a hydraulic parking brake. The construction is designed to withstand the heavy overloads that occur when working on slopes and during rapid work cycles. OEM quality - perfect fit and performance identical to the original factory component.

Technical Specification:

Part Type Axial piston hydraulic swing motor (without gearbox)
Parts Category Hydraulic System / Swing Drive Motor
Part Number 20/951632
Construction Motor only (without gearbox)
Brake Integrated wet multi-disc brake
Valve Block Soft start and swing braking
Quality OEM (first fit quality)

Application (JCB Machines):

Mini Excavators
808X Series
8080 [T2] (2003-2009)  ·  8085 ZTS [T3] (2010-2014)
Workshop Technical Tip: When replacing the swing motor without gearbox, it is critical to check the condition of the splines on the planetary gearbox input shaft. If the socket is worn, the new motor may fail quickly. Always pre-fill the motor housing with clean hydraulic oil before the first start (through the case drain port). Running dry even for a few seconds can cause irreversible seizure of the piston bores. Also check that the drain (leak-off) line is clear - a blocked drain port causes pressure build-up in the housing and destroys the shaft seal.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 20/951632

Product Details
20/951632

Data sheet

Machine type
MINIEXCAVATOR
Machine
JCB
