JCB Hydraulic swing motor

334/L0319
7,995.00 zł
Tax included

6,500.00 zł tax excl.

2166 2166 By purchasing this product, you will earn points exchangeable for a discount voucher worth 216.60 złfor your next order.

Quantity
Last items in stock

Standard orders are shipped until 14:00. Pallet shipments are dispatched until 13:00.

Unsure? We can select the right part based on the VIN — WhatsApp

Alternative part numbers : LNM0434 334-L0319 334L0319

Description

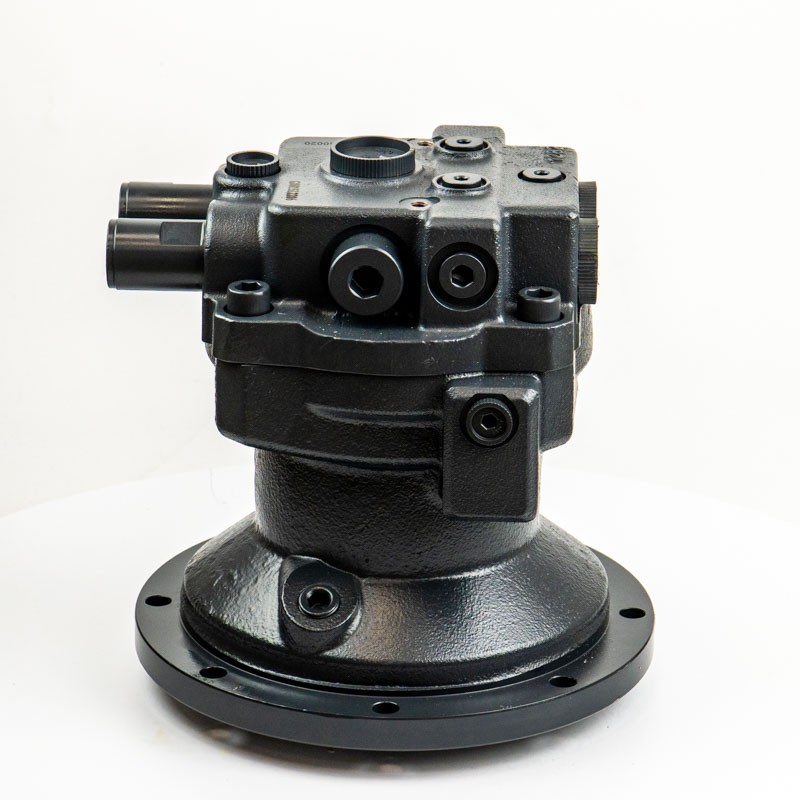

JCB Hydraulic Swing Motor - 334/L0319

High-quality hydraulic swing motor (axial piston type), a key component of the upper structure rotation system in JCB excavators. This unit is responsible for converting hydraulic energy from the main pump into torque transferred to the planetary reduction gearbox. The motor features precise control, an integrated valve block, and a hydraulic parking brake, ensuring smooth movement and operational safety on slopes.

Technical Specification:

  • Mounting: 8 mounting holes (flange).
  • Type: Fixed displacement axial piston motor.
  • Application: Mechanical drive for swing reduction gear (Swing Drive).
  • Compatible swing reduction part numbers: 332/L5886, 336/E8504

Compatibility:

Machine TypeModels and Variants
JCB / JS Crawler Excavators JCB130, JCB140, JCB145, JCB150, JS 115, JS 120, JS 130, JS 140, JS 145, JS130 (1995–1995)
XR Crawler Excavators (New Gen) 145XR, 145XR [STV JCB9], 145XRD -SV (2024–2026), 145XRDT-SV (2024–2026), 145XRL -SV (2024–2026), 145XRLT-SV (2025–2025)
JS Wheeled Excavators JS 130, JS 145
Workshop Technical Tip: The most critical step when installing a new swing motor is strictly priming the housing with clean hydraulic oil before the initial startup. Running "dry" for even a few seconds can lead to irreversible piston seizure. Additionally, always check the permeability of the return line – high pressure in the housing (caused, for example, by a kinked hose) will immediately blow out the shaft seal.

Standing by your machine? We'll find the right part in 5 minutes!

Don't waste time searching. Take a picture of the VIN plate or the old part and send it to us on WhatsApp. We will quickly check the catalogs and send you a link to the exact product you need.

Catalog number: 334/L0319

Product Details
334/L0319

Data sheet

Machine type
EXCAVATOR
Machine
JCB
